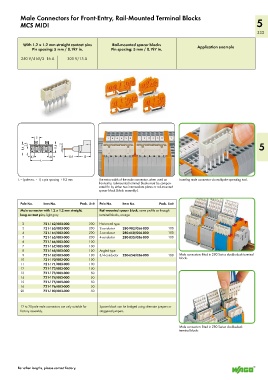

Male Connectors for Front-Entry, Rail-Mounted Terminal Blocks
MCS MIDI 5
333

With 1.2 x 1.2 mm straight contact pins Rail-mounted spacer blocks Application example
Pin spacing: 5 mm / 0.197 in. Pin spacing: 5 mm / 0.197 in.

250 V/4 kV/3 16 A 300 V/15 A

> 5 <
< 3,8 5
8,4 <__ (_ 11 ,4 _) 1,2 __> >
> >
> 4,1< > 4,1< (__ 13,9 __) (__ 12 __)
<_______L _______>

L = (pole no. – 1) x pin spacing + 8.2 mm The extra width of the male connectors when used on Inserting male connector via multipole operating tool.
front-entry, rail-mounted terminal blocks must be compen-
sated for by either two intermediate plates or rail-mounted
spacer block (block assembly).

Pole No. Item No. Pack. Unit Pole No. Item No. Pack. Unit
Male connector with 1.2 x 1.2 mm straight, Rail-mounted spacer block, same profile as through
long contact pins, light gray terminal blocks, orange
2 721-162/003-000 200 Horizontal type
3 721-163/003-000 200 2-conductor 280-902/056-000 100
4 721-164/003-000 200 3-conductor 280-650/056-000 100
5 721-165/003-000 200 4-conductor 280-835/056-000 100
6 721-166/003-000 100
7 721-167/003-000 100
8 721-168/003-000 100 Angled type
9 721-169/003-000 100 3/4-conductor 280-654/056-000 100 Male connectors fitted in 280 Series double-deck terminal
10 721-170/003-000 100 blocks
11 721-171/003-000 100
12 721-172/003-000 100
13 721-173/003-000 50
14 721-174/003-000 50
15 721-175/003-000 50
16 721-176/003-000 50
20 721-180/003-000 50

12 to 20-pole male connectors are only suitable for Spacer block can be bridged using alternate jumpers or
factory assembly. staggered jumpers.

Male connectors fitted in 280 Series double-deck
terminal blocks

For other lengths, please contact factory.
