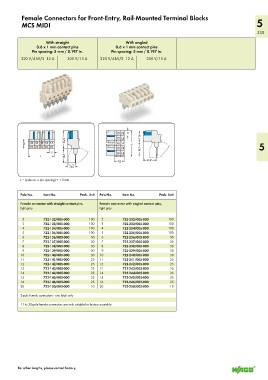

Page 337 - Wago_PCB_TerminalBlocksConnectors_Volume2_2015_US

Female Connectors for Front-Entry, Rail-Mounted Terminal Blocks
MCS MIDI 5
335

With straight With angled
0.6 x 1 mm contact pins 0.6 x 1 mm contact pins
Pin spacing: 5 mm / 0.197 in. Pin spacing: 5 mm / 0.197 in.

320 V/4 kV/3 12 A 300 V/15 A 320 V/4 kV/3 12 A 300 V/15 A

< 5
__ 1 8,25 ___> >
<9,8> <_______ L _______> <_ 14,5 _><11,6 > 5

> 5 <
<_______ L _______> <_ 14,5 _><_ <9,8> <_ 13,85 _>

> 7,65 <

L = (pole no. x pin spacing) + 1.5 mm

Pole No. Item No. Pack. Unit Pole No. Item No. Pack. Unit

Female connector with straight contact pins, Female connector with angled contact pins,
light gray light gray

2 722-132/005-000 100 2 722-232/005-000 100
3 722-133/005-000 100 3 722-233/005-000 100
4 722-134/005-000 100 4 722-234/005-000 100
5 722-135/005-000 100 5 722-235/005-000 100
6 722-136/005-000 50 6 722-236/005-000 50
7 722-137/005-000 50 7 722-237/005-000 50
8 722-138/005-000 50 8 722-238/005-000 50
9 722-139/005-000 50 9 722-239/005-000 50
10 722-140/005-000 50 10 722-240/005-000 50
11 722-141/005-000 25 11 722-241/005-000 25
12 722-142/005-000 25 12 722-242/005-000 25
13 722-143/005-000 25 12 722-243/005-000 25
14 722-144/005-000 25 14 722-244/005-000 25
15 722-145/005-000 25 15 722-245/005-000 25
16 722-146/005-000 25 16 722-246/005-000 25
20 722-150/005-000 10 20 722-250/005-000 10
2-pole female connectors - one latch only

11 to 20-pole female connectors are only suitable for factory assembly.

For other lengths, please contact factory.
