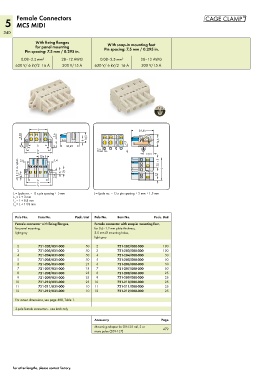

Page 342 - Wago_PCB_TerminalBlocksConnectors_Volume2_2015_US

"

Female Connectors
5 MCS MIDI
340

With fixing flanges With snap-in mounting feet
for panel mounting
Pin spacing: 7.5 mm / 0.295 in. Pin spacing: 7.5 mm / 0.295 in.

0.08–2.5 mm 2 28–12 AWG 0.08–2.5 mm 2 28–12 AWG
630 V/ 6 kV/2 16 A 300 V/15 A 630 V/ 6 kV/2 16 A 300 V/15 A

<____L____> <____26,45____>
2,6 __> > ( 14,3 _ )
6 _ 4,5 <_14,3 _>
3,55 ___>
>
<____ L 1 ____>
2,6 < ___ < < <__ <__ 26,45 __> <
<
3,4
<______ L 2 ______> 2,6
__> <
<________ L 3 ________> > 12,15 <
> 7,5 5 < 3,4 5 <
(_14,6 _) 2,6 <__ ( ( <__ > > 7,5
8,2 ) > 4,7 > <__ > 5,1 < 7,0 < 1,5 > <__ <_______L ______>
2,6
> > <____ L 1 ____>
<___ ___ L 2 ______> >
<________ L 3 ________>
L = (pole no. – 1) x pin spacing + 5 mm L = (pole no. – 1) x pin spacing + 5 mm + 1.5 mm
L = L + 3 mm
1
L = L + 8.8 mm
2
L = L + 14.8 mm
3
Pole No. Item No. Pack. Unit Pole No. Item No. Pack. Unit
Female connector with fixing flanges, Female connector with snap-in mounting feet,
for panel mounting, for 0.6–1.2 mm plate thickness,
light gray 3.5 mm Ø mounting holes,
light gray
2 721-202/031-000 50 2 721-202/008-000 100
3 721-203/031-000 50 3 721-203/008-000 100
4 721-204/031-000 50 4 721-204/008-000 50
5 721-205/031-000 50 5 721-205/008-000 50
6 721-206/031-000 25 6 721-206/008-000 50
7 721-207/031-000 25 7 721-207/008-000 50
8 721-208/031-000 25 8 721-208/008-000 25
9 721-209/031-000 25 9 721-209/008-000 25
10 721-210/031-000 25 10 721-210/008-000 25
11 721-211/031-000 10 11 721-211/008-000 25
12 721-212/031-000 10 12 721-212/008-000 25
For cutout dimensions, see page 488, Table 1.

2-pole female connectors - one latch only

Accessory Page
Mounting adapter for DIN 35 rail, 3 or 479
more poles (209-137)

For other lengths, please contact factory.
