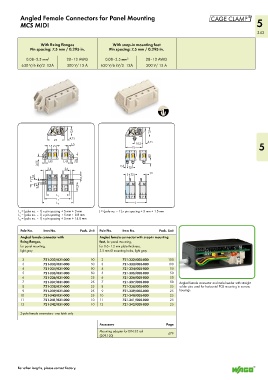

Page 345 - Wago_PCB_TerminalBlocksConnectors_Volume2_2015_US

"

Angled Female Connectors for Panel Mounting
MCS MIDI 5
343

With fixing flanges With snap-in mounting feet
Pin spacing: 7.5 mm / 0.295 in. Pin spacing: 7.5 mm / 0.295 in.

0.08–2.5 mm 2 28–12 AWG 0.08–2.5 mm 2 28–12 AWG
630 V/6 kV/2 12A 300 V/ 15 A 630 V/6 kV/2 12A 300 V/ 15 A

(_13,1_) (_13,1_)

4,25
<___23___> <___ 4,25
1,5 > 10,2 <___
> 57,5 < > <__ 5
<___23___>
< < 4,5 <__
1,45
3,55 ___> > <___ 1,45 < 2,6 __> 2,4 >
___>
3,4 2,6 __> 7,5 <
> <__ __> <
1,5
< 5 7,5 > <__
< 1 5, <__ > 6,7
7 <
> > 2,5 __> (12,8_ )
<______ L 1 _____> _
<_______ L 2 _______>
<_________ L 3 _________> <______L ______>
L = (pole no. – 1) x pin spacing + 5 mm + 3 mm L = (pole no. – 1) x pin spacing + 5 mm + 1.5 mm
1
L = (pole no. – 1) x pin spacing + 5 mm + 8.8 mm
2
L = (pole no. – 1) x pin spacing + 5 mm + 14.8 mm
3
Pole No. Item No. Pack. Unit Pole No. Item No. Pack. Unit
Angled female connector with Angled female connector with snap-in mounting
fixing flanges, feet, for panel mounting,
for panel mounting, for 0.6–1.2 mm plate thickness,
light gray 3.5 mm Ø mounting holes, light gray
2 721-332/031-000 50 2 721-332/008-000 100
3 721-333/031-000 50 3 721-333/008-000 100
4 721-334/031-000 50 4 721-334/008-000 50
5 721-335/031-000 50 5 721-335/008-000 50
6 721-336/031-000 25 6 721-336/008-000 50
7 721-337/031-000 25 7 721-337/008-000 50 Angled female connector and male header with straight
8 721-338/031-000 25 8 721-338/008-000 25 solder pins used for horizontal PCB mounting in narrow
9 721-339/031-000 25 9 721-339/008-000 25 housings.
10 721-340/031-000 25 10 721-340/008-000 25
11 721-341/031-000 10 11 721-341/008-000 25
12 721-342/031-000 10 12 721-342/008-000 25
2-pole female connectors - one latch only

Accessory Page
Mounting adapter for DIN 35 rail 479
(209-120)

For other lengths, please contact factory.
