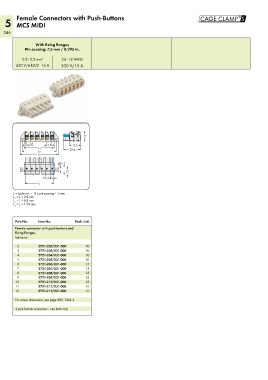

Page 348 - Wago_PCB_TerminalBlocksConnectors_Volume2_2015_US

!

Female Connectors with Push-Buttons
5 MCS MIDI
346

With fixing flanges
Pin spacing: 7.5 mm / 0.295 in.

0.2–2.5 mm 2 24–12 AWG
630 V/6 kV/2 16 A 300 V/15 A

>
<15

7,5 <17,2 >
<________ L 1 ________> <____ 25,6 __>
<__________ L 2 __________>
<___________ L 3 ____________>
2,6 7
7,5
7,5 5
L
<_______________ _____________>
L = (pole no. – 1) x pin spacing + 5 mm
L = L + 2.8 mm
1
L = L + 8.8 mm
2
L = L + 14.8 mm
3
Pole No. Item No. Pack. Unit
Female connector with push-buttons and
fixing flanges,
light gray

2 2721-202/031-000 50
3 2721-203/031-000 50
4 2721-204/031-000 50
5 2721-205/031-000 50
6 2721-206/031-000 25
7 2721-207/031-000 25
8 2721-208/031-000 25
9 2721-209/031-000 25
10 2721-210/031-000 25
11 2721-211/031-000 10
12 2721-212/031-000 10
For cutout dimensions, see page 489, Table 2.

2-pole female connectors - one latch only
