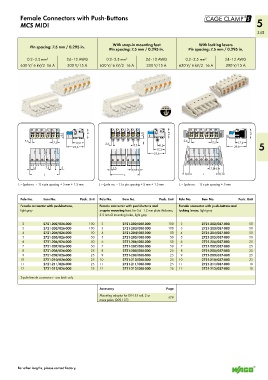

Page 347 - Wago_PCB_TerminalBlocksConnectors_Volume2_2015_US

!

Female Connectors with Push-Buttons
MCS MIDI 5
345

With snap-in mounting feet With locking levers
Pin spacing: 7.5 mm / 0.295 in. Pin spacing: 7.5 mm / 0.295 in. Pin spacing: 7.5 mm / 0.295 in.

0.2–2.5 mm 2 24–12 AWG 0.2–2.5 mm 2 24–12 AWG 0.2–2.5 mm 2 24–12 AWG
630 V/ 6 kV/2 16 A 300 V/15 A 630 V/ 6 kV/2 16 A 300 V/15 A 630 V/ 6 kV/2 16 A 300 V/15 A

> > >
4,5 <15 4,5 <15 <15
2,6
7,5 <17,2 > 2,6 7,5 <17,2 >
<____25,6 ___> 7,5 11,3 <_____ 29,8 ____> 5
<17,2 >
<____25,6 ___>

1,5 7,5 5 1,5 7,5 5
7,5 5
L
<_______________ L _____________> <_______________ L _____________> < <_______________ _____________> <
L = (pole no. – 1) x pin spacing + 5 mm + 1.5 mm L = (pole no. – 1) x pin spacing + 5 mm + 1.5 mm L = (pole no. – 1) x pin spacing + 5 mm

Pole No. Item No. Pack. Unit Pole No. Item No. Pack. Unit Pole No. Item No. Pack. Unit
Female connector with push-buttons, Female connector with push-buttons and Female connector with push-buttons and
light gray snap-in mounting feet, for 0.6–1.2 mm plate thickness, locking levers, light gray
3.5 mm Ø mounting holes, light gray
2 2721-202/026-000 100 2 2721-202/008-000 100 2 2721-202/037-000 50
3 2721-203/026-000 100 3 2721-203/008-000 100 3 2721-203/037-000 50
4 2721-204/026-000 50 4 2721-204/008-000 50 4 2721-204/037-000 50
5 2721-205/026-000 50 5 2721-205/008-000 50 5 2721-205/037-000 50
6 2721-206/026-000 50 6 2721-206/008-000 50 6 2721-206/037-000 25
7 2721-207/026-000 50 7 2721-207/008-000 50 7 2721-207/037-000 25
8 2721-208/026-000 25 8 2721-208/008-000 25 8 2721-208/037-000 25
9 2721-209/026-000 25 9 2721-209/008-000 25 9 2721-209/037-000 25
10 2721-210/026-000 25 10 2721-210/008-000 25 10 2721-210/037-000 25
11 2721-211/026-000 25 11 2721-211/008-000 25 11 2721-211/037-000 10
12 2721-212/026-000 25 12 2721-212/008-000 25 12 2721-212/037-000 10
2-pole female connectors - one latch only

Accessory Page
Mounting adapter for DIN 35 rail, 3 or 479
more poles (209-137)

For other lengths, please contact factory.
