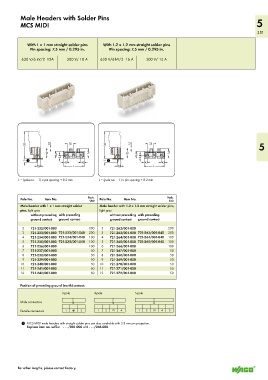

Page 353 - Wago_PCB_TerminalBlocksConnectors_Volume2_2015_US

Male Headers with Solder Pins
MCS MIDI 5
351

With 1 x 1 mm straight solder pins With 1.2 x 1.2 mm straight solder pins
Pin spacing: 7.5 mm / 0.295 in. Pin spacing: 7.5 mm / 0.295 in.

630 V/6 kV/2 12A 300 V/ 10 A 630 V/6 kV/2 16 A 300 V/ 15 A

<________30_______> 1,5 <__ > 7,5 <________30_______> 1,5 <__ > 7,5 5

5 1 <_ 12_> (8,4) < >3,8 4,1 >4,1 < (_11,4_) 5 1 <_ 12_> (8,4) < >3,8 4,1 >4,1 < (_11,4_)
> >3,8 < <__________> > >3,8 < <__________>
L
L
L = (pole no. – 1) x pin spacing + 8.2 mm L = (pole no. – 1) x pin spacing + 8.2 mm

Pole No. Item No. Pack. Pole No. Item No. Pack.
Unit
Unit
Male header with 1 x 1 mm straight solder Male header with 1.2 x 1.2 mm straight solder pins,
pins, light gray light gray
without preceding with preceding without preceding with preceding
ground contact ground contact ground contact ground contact
2 721-232/001-000 200 2 721-262/001-000 200
3 721-233/001-000 721-233/001-040 200 3 721-263/001-000 721-263/001-040 200
4 721-234/001-000 721-234/001-040 100 4 721-264/001-000 721-264/001-040 100
5 721-235/001-000 721-235/001-040 100 5 721-265/001-000 721-265/001-040 100
6 721-236/001-000 100 6 721-266/001-000 100
7 721-237/001-000 50 7 721-267/001-000 50
8 721-238/001-000 50 8 721-268/001-000 50
9 721-239/001-000 50 9 721-269/001-000 50
10 721-240/001-000 50 10 721-270/001-000 50
11 721-241/001-000 50 11 721-271/001-000 50
12 721-242/001-000 50 12 721-272/001-000 1 3 3 50

Position of preceding ground (earth) contact:
1
1
3-pole 4-pole 3 3 5-pole 2 3 4
Male connectors

Female connectors 1 3 3 1 2 3 4 1 2 3 4 5

1 MCS MIDI male headers with straight solder pins are also available with 3.8 mm pin projection.
Replace item no. suffix: . . . /001-000 with . . . /046-000.
1 2 3 4 1 2 3 4 5

1 2 3 4 5

For other lengths, please contact factory.
