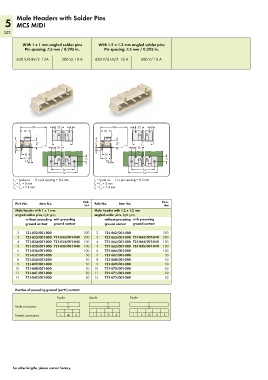

Page 354 - Wago_PCB_TerminalBlocksConnectors_Volume2_2015_US

Male Headers with Solder Pins
5 MCS MIDI
352

With 1 x 1 mm angled solder pins With 1.2 x 1.2 mm angled solder pins
Pin spacing: 7.5 mm / 0.295 in. Pin spacing: 7.5 mm / 0.295 in.

630 V/6 kV/2 12A 300 V/ 10 A 630 V/6 kV/2 16 A 300 V/ 15 A

<________30________> 4,17,5 4,1 <________30________> 4,17,5 4,1
<_12_> <_12_>
>3,8(_ 11,4_) < 7,5 > >6,4 7,5 < >3,8(_ 11,4_) < > 7,5 >6,4 7,5 <
<__________>
<__________>
L 1
L 1
(_10_) (_10_)
<_12_> 5 <_12_> 5
1,5 1,5
_> < _> <
<_______ _____> <_______ _____>
L 2
L 2
<_________ _ ________> <_________ _ ________>
L 3
L 3
L = (pole no. – 1) x pin spacing + 8.2 mm L = (pole no. – 1) x pin spacing + 8.2 mm
1
1
L = L + 5 mm L = L + 5 mm
1
1
2
2
L = L + 7.4 mm L = L + 7.4 mm
3
2
3
2
Pole No. Item No. Pack. Pole No. Item No. Pack.
Unit
Unit
Male header with 1 x 1 mm Male header with 1.2 x 1.2 mm
angled solder pins, light gray angled solder pins, light gray
without preceding with preceding without preceding with preceding
ground contact ground contact ground contact ground contact
2 721-832/001-000 200 2 721-862/001-000 200
3 721-833/001-000 721-833/001-040 200 3 721-863/001-000 721-863/001-040 200
4 721-834/001-000 721-834/001-040 100 4 721-864/001-000 721-864/001-040 100
5 721-835/001-000 721-835/001-040 100 5 721-865/001-000 721-865/001-040 100
6 721-836/001-000 100 6 721-866/001-000 100
7 721-837/001-000 50 7 721-867/001-000 50
8 721-838/001-000 50 8 721-868/001-000 50
9 721-839/001-000 50 9 721-869/001-000 50
10 721-840/001-000 50 10 721-870/001-000 50
11 721-841/001-000 50 11 721-871/001-000 50
12 721-842/001-000 50 12 721-872/001-000 1 3 3 50
Position of preceding ground (earth) contact:
1
1
3-pole 4-pole 3 3 5-pole 2 3 4
Male connectors
Female connectors 1 3 3 1 2 3 4 1 2 3 4 5

1 2 3 4 1 2 3 4 5

1 2 3 4 5

For other lengths, please contact factory.
