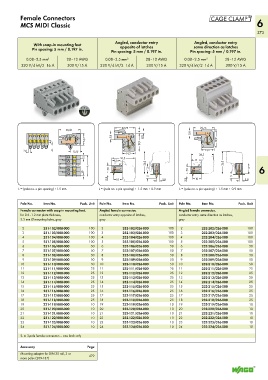

Page 375 - Wago_PCB_TerminalBlocksConnectors_Volume2_2015_US

"

Female Connectors
MCS MIDI Classic 6
373

Angled, conductor entry Angled, conductor entry
With snap-in mounting feet
opposite of latches
same direction as latches
Pin spacing: 5 mm / 0.197 in. Pin spacing: 5 mm / 0.197 in. Pin spacing: 5 mm / 0.197 in.
0.08–2.5 mm 2 28–12 AWG 0.08–2.5 mm 2 28–12 AWG 0.08–2.5 mm 2 28–12 AWG
320 V/4 kV/2 16 A 300 V/15 A 320 V/4 kV/2 14 A 300 V/15 A 320 V/4 kV/2 14 A 300 V/15 A

<___ 22,75 ___> <___ 22,75 ___>
<_____ 26,45_____> 4 < < 5,8 <
<_14,3_> 5,8 < 2,5 __> < __ 1 9,9 ___>
4,5 __ < __ 1 9,9 ___> <_
2,6 > 12,15 < <_ <_ 14,3 _>
__> < <_ 14,3 _>
_ <_____ 26,3 _____>
<______L______> < 7,5 <_ _____ 26,3 _____> <_ 6
5 <_____ 26,3 _____> __ 26,3 _____> < 12 >
< 12 >
1,5 <_ _ <___ <_12 7,5 < < <_12
3,8 __> < 10 > 5 < < <__ 3,8 __ < 10 > < 5 < <__
3,8
3,8
(_
L = (pole no. x pin spacing) +1.5 mm L = (pole no. x pin spacing) + 1.5 mm + 0.9 mm L = (pole no. x pin spacing) + 1.5 mm + 0.9 mm

Pole No. Item No. Pack. Unit Pole No. Item No. Pack. Unit Pole No. Item No. Pack. Unit
Female connector with snap-in mounting feet, Angled female connector, Angled female connector,
for 0.6–1.2 mm plate thickness, conductor entry opposite of latches, conductor entry same direction as latches,
3.5 mm Ø mounting holes, gray gray gray
2 231-102/008-000 100 2 232-102/026-000 100 2 232-202/026-000 100
3 231-103/008-000 100 3 232-103/026-000 100 3 232-203/026-000 100
4 231-104/008-000 100 4 232-104/026-000 100 4 232-204/026-000 100
5 231-105/008-000 100 5 232-105/026-000 100 5 232-205/026-000 100
6 231-106/008-000 50 6 232-106/026-000 50 6 232-206/026-000 50
7 231-107/008-000 50 7 232-107/026-000 50 7 232-207/026-000 50
8 231-108/008-000 50 8 232-108/026-000 50 8 232-208/026-000 50
9 231-109/008-000 50 9 232-109/026-000 50 9 232-209/026-000 50
10 231-110/008-000 50 10 232-110/026-000 50 10 232-210/026-000 50
11 231-111/008-000 25 11 232-111/026-000 25 11 232-211/026-000 25
12 231-112/008-000 25 12 232-112/026-000 25 12 232-212/026-000 25
13 231-113/008-000 25 13 232-113/026-000 25 13 232-213/026-000 25
14 231-114/008-000 25 14 232-114/026-000 25 14 232-214/026-000 25
15 231-115/008-000 25 15 232-115/026-000 25 15 232-215/026-000 25
16 231-116/008-000 25 16 232-116/026-000 25 16 232-216/026-000 25
17 231-117/008-000 25 17 232-117/026-000 25 17 232-217/026-000 25
18 231-118/008-000 25 18 232-118/026-000 25 18 232-218/026-000 25
19 231-119/008-000 10 19 232-119/026-000 10 19 232-219/026-000 10
20 231-120/008-000 10 20 232-120/026-000 10 20 232-220/026-000 10
21 231-121/008-000 10 21 232-121/026-000 10 21 232-221/026-000 10
22 231-122/008-000 10 22 232-122/026-000 10 22 232-222/026-000 10
23 231-123/008-000 10 23 232-123/026-000 10 23 232-223/026-000 10
24 231-124/008-000 10 24 232-124/026-000 10 24 232-224/026-000 10
2- to 3-pole female connectors – one latch only

Accessory Page
Mounting adapter for DIN 35 rail, 3 or 479
more poles (209-137)
