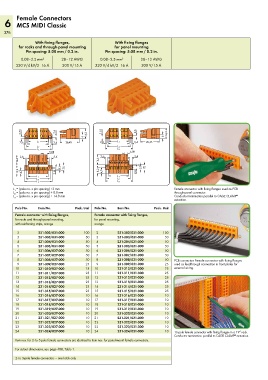

Female Connectors
6 MCS MIDI Classic
376

With fixing flanges, With fixing flanges
for racks and through-panel mounting for panel mounting
Pin spacing: 5.08 mm / 0.2 in. Pin spacing: 5.08 mm / 0.2 in.

0.08–2.5 mm 2 28–12 AWG 0.08–2.5 mm 2 28–12 AWG
320 V/4 kV/2 16 A 300 V/15 A 320 V/4 kV/2 16 A 300 V/15 A

2,6
2,6 __> > (14,3 _ ) __> > ( 14,3 _ )
6 _ 3,55 ___> < 6 _
3,55 ___>
>
>
<
2,6 <____ L 1 ____> 3,4 <___ 26,45 ___> < 2,6 <____ L 1 ____> 3,4 <___ 26,45 ___> <
< ___ < < <__ < ___ < < <__
<______ L 2 ______> <______ L 2 ______>
<________ L 3 ________> <________ L 3 ________>
5,08
5,08
(_ <___ (_ <___
3,4
(_14,6_) > > > (_ 1 4,6 _) > > >
2,6 <__ ( ( <__ 2,6 <__ ( ( <__
3,4
8,2 ) > 4,7 2,6 <__ > 5,1 < 7,0 < ) 8,2 > 4,7 2,6 <__ > 5,1 7,0 <
> > <____ L 1 ____> > > <____ L 1 ____>
<___ ___ L 2 ______> <___ ___ L 2 ______>
<________ L 3 ________> <________ L 3 ________>
L = (pole no. x pin spacing) +3 mm Female connector with fixing flanges used as PCB
1
L = (pole no. x pin spacing) + 8.8 mm through-panel connector.
2
L = (pole no. x pin spacing) + 14.8 mm Conductor termination parallel to CAGE CLAMP
®
3
actuation.
Pole No. Item No. Pack. Unit Pole No. Item No. Pack. Unit
Female connector with fixing flanges, Female connector with fixing flanges,
for racks and through-panel mounting, for panel mounting,
with reinforcing strips, orange orange
2 231-302/031-000 100 2 231-302/031-000 100
3 231-303/031-000 50 3 231-303/031-000 50
4 231-304/031-000 50 4 231-304/031-000 50
5 231-305/031-000 50 5 231-305/031-000 50
6 231-306/027-000 50 6 231-306/031-000 50
7 231-307/027-000 50 7 231-307/031-000 50
8 231-308/027-000 50 8 231-308/031-000 50 PCB connectors Female connector with fixing flanges
9 231-309/027-000 25 9 231-309/031-000 25 used as feedthrough connection in front plates for
10 231-310/027-000 25 10 231-310/031-000 25 external wiring.
11 231-311/027-000 25 11 231-311/031-000 25
12 231-312/027-000 25 12 231-312/031-000 25
13 231-313/027-000 25 13 231-313/031-000 25
14 231-314/027-000 25 14 231-314/031-000 25
15 231-315/027-000 25 15 231-315/031-000 25
16 231-316/027-000 10 16 231-316/031-000 10
17 231-317/027-000 10 17 231-317/031-000 10
18 231-318/027-000 10 18 231-318/031-000 10
19 231-319/027-000 10 19 231-319/031-000 10
20 231-320/027-000 10 20 231-320/031-000 10
21 231-321/027-000 10 21 231-321/031-000 10
22 231-322/027-000 10 22 231-322/031-000 10
23 231-323/027-000 10 23 231-323/031-000 10
24 231-324/027-000 10 24 231-324/031-000 10 16-pole female connector with fixing flanges in a 19” rack.
Conductor termination parallel to CAGE CLAMP actuation.
®
Item nos. for 2- to 5-pole female connectors are identical to item nos. for panel-mount female connectors.
For cutout dimensions, see page 488, Table 1.
2- to 3-pole female connectors – one latch only
