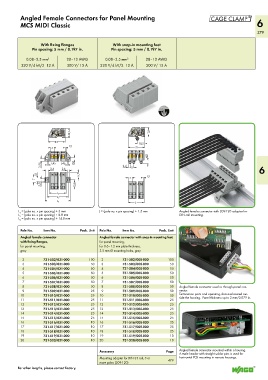

Page 381 - Wago_PCB_TerminalBlocksConnectors_Volume2_2015_US

"

Angled Female Connectors for Panel Mounting
MCS MIDI Classic 6
379

With fixing flanges With snap-in mounting feet
Pin spacing: 5 mm / 0.197 in. Pin spacing: 5 mm / 0.197 in.

0.08–2.5 mm 2 28–12 AWG 0.08–2.5 mm 2 28–12 AWG
320 V/4 kV/2 12 A 300 V/ 15 A 320 V/4 kV/2 12 A 300 V/ 15 A

(_ 13,1_) (_13,1_)

<___23___> 10,2
1,5
> 5 < > <__ <___23___>
< < 4,5 <__
1,45
3,55 ___> > <___ 1,45 < 2,6 __> 2,4 5 < >
___>
__>
3,4
__>
> <__ 2,6 < < 6
< 1 5, <__ < > 6,7 5 > <__
1,5
7
> > 2,5 __> (12,8_ )
<____L 1 ____> _
<_____L 2 _____>
<______ _L 3 _______>
<____L ____>
L = (pole no. x pin spacing) + 3 mm L = (pole no. x pin spacing) + 1.5 mm Angled female connector with 209-120 adapter for
1
L = (pole no. x pin spacing) + 8.8 mm DIN-rail mounting.
2
L = (pole no. x pin spacing) + 14.8 mm
3
Pole No. Item No. Pack. Unit Pole No. Item No. Pack. Unit
Angled female connector Angled female connector with snap-in mounting feet,
with fixing flanges, for panel mounting,
for panel mounting, for 0.6–1.2 mm plate thickness,
gray 3.5 mm Ø mounting holes, gray
2 731-502/031-000 100 2 731-502/008-000 100
3 731-503/031-000 50 3 731-503/008-000 50
4 731-504/031-000 50 4 731-504/008-000 50
5 731-505/031-000 50 5 731-505/008-000 50
6 731-506/031-000 50 6 731-506/008-000 50
7 731-507/031-000 50 7 731-507/008-000 50
8 731-508/031-000 50 8 731-508/008-000 50 Angled female connector used as through-panel con-
9 731-509/031-000 25 9 731-509/008-000 50 nector.
10 731-510/031-000 25 10 731-510/008-000 50 Termination ports and operating slots are located out-
side the housing. Panel thickness up to 2 mm/0.079 in.
11 731-511/031-000 25 11 731-511/008-000 25
12 731-512/031-000 25 12 731-512/008-000 25
13 731-513/031-000 25 13 731-513/008-000 25
14 731-514/031-000 25 14 731-514/008-000 25
15 731-515/031-000 25 15 731-515/008-000 25
16 731-516/031-000 10 16 731-516/008-000 25
17 731-517/031-000 10 17 731-517/008-000 25
18 731-518/031-000 10 18 731-518/008-000 25
19 731-519/031-000 10 19 731-519/008-000 10
20 731-520/031-000 10 20 731-520/008-000 10

Accessory Page Angled female connector mounted within a housing.
A male header with straight solder pins is used for
Mounting adapter for DIN 35 rail, 3 or 479 horizontal PCB mounting in narrow housings.
more poles (209-120)
For other lengths, please contact factory.
