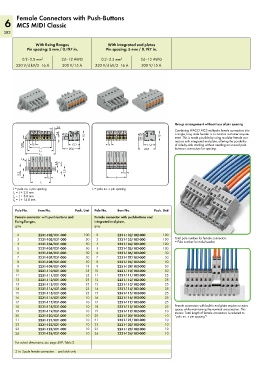

Female Connectors with Push-Buttons
   6 MCS MIDI Classic
   382


                 With fixing flanges             With integrated end plates
             Pin spacing: 5 mm / 0.197 in.      Pin spacing: 5 mm / 0.197 in.

           0.2–2.5 mm 2     24–12 AWG         0.2–2.5 mm 2      24–12 AWG
        320 V/4 kV/2  16 A   300 V/15 A    320 V/4 kV/2  16 A   300 V/15 A















                                                                               Group arrangement without loss of pin spacing
                          2,6
                                                                               Combining WAGO MCS multipole female connectors into
                           2,6         15 >                             15 >   a single, long male header is a common customer require-
                                       <                                <      ment. This is made possible by using modular female con-
                                                                               nectors with integrated end plate, offering the possibility
                5
                 <
           3,55  <_____ L 1 _____>  <__ < 17,2 >  <  5  <     <__ < 17,2 >     of side-by-side stacking without needing an unused pole
                                                                               between connectors for spacing.
               <
                                                                 25,6 __>
                                25,6 __>
             <_______L 2 _______>
                    ________>
            <________ L 3
          2,6
                          2,6  7
                              7,5                       5  <
          5,1                                           <
           4          <  5  <                   <_____ L_____>
               <_____ L_____>
       L = pole no. x pin spacing         L = pole no. x pin spacing
       L  = L + 2.8 mm
       1
       L  = L + 8.8 mm
       2
       L  = L + 14.8 mm
       3
        Pole No.  Item No.        Pack. Unit  Pole No.  Item No.     Pack. Unit
        Female connector with push-buttons and    Female connector with push-buttons and
        fixing flanges,                    integrated end plate,
        gray                               gray
          2       2231-102/031-000    100   2        2231-102/102-000    100
          3       2231-103/031-000     50   3        2231-103/102-000    100   Total pole number for female connectors
                                                                               = Pole number for male header
         4        2231-104/031-000     50   4        2231-104/102-000    100
         5        2231-105/031-000     50   5        2231-105/102-000    100
         6        2231-106/031-000     50   6        2231-106/102-000     50
          7       2231-107/031-000     50   7        2231-107/102-000     50
          8       2231-108/031-000     50   8        2231-108/102-000     50
         9        2231-109/031-000     25   9        2231-109/102-000     50
        10        2231-110/031-000     25  10        2231-110/102-000     50
        11        2231-111/031-000     25  11        2231-111/102-000     25
        12        2231-112/031-000     25  12        2231-112/102-000     25
        13        2231-113/031-000     25  13        2231-113/102-000     25
        14        2231-114/031-000     25  14        2231-114/102-000     25
        15        2231-115/031-000     25  15        2231-115/102-000     25
        16        2231-116/031-000     10  16        2231-116/102-000     25
        17        2231-117/031-000     10  17        2231-117/102-000     25
        18        2231-118/031-000     10  18        2231-118/102-000     25   Female connectors with built-in end plate require no extra
        19        2231-119/031-000     10  19        2231-119/102-000     10   space, while maintaining the nominal cross-section. This
                                                                               means: Total length of female connectors is reduced to
        20        2231-120/031-000     10  20        2231-120/102-000     10   “pole no. x pin spacing”!
        21        2231-121/031-000     10  21        2231-121/102-000     10
        22        2231-122/031-000     10  22        2231-122/102-000     10
        23        2231-123/031-000     10  23        2231-123/102-000     10
        24        2231-124/031-000     10  24        2231-124/102-000     10
        For cutout dimensions, see page 489, Table 2.

        2- to 3-pole female connectors – one latch only
