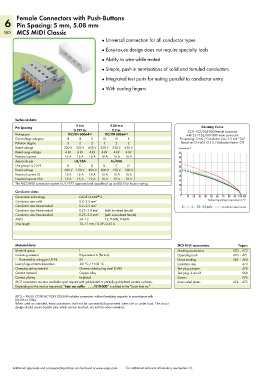

Page 382 - Wago_PCB_TerminalBlocksConnectors_Volume2_2015_US

Female Connectors with Push-Buttons
6 Pin Spacing: 5 mm, 5.08 mm
380 MCS MIDI Classic
● Universal connection for all conductor types

● Easy-to-use design does not require specialty tools
● Ability to wire while mated

● Simple, push-in terminations of solid and ferruled conductors

● Integrated test ports for testing parallel to conductor entry

● With coding fingers

Technical data:

Pin Spacing 5 mm 5.08 mm Derating Curve
0.197 in. 0.2 in. 2231-102/026-000 female connector
Ratings per IEC/EN 60664-1 IEC/EN 60664-1 with 231-162/001-000 male connector
Overvoltage category III III II III III II Pin spacing: 5 mm / Conductor size: 2.5 mm “f-st”
2
Pollution degree 3 2 2 3 2 2 Based on: EN 60512-5-2 / Reduction factor: 0.8
Rated voltage 320 V 320 V 630 V 320 V 320 V 630 V Current in A
Rated surge voltage 4 kV 4 kV 4 kV 4 kV 4 kV 4 kV 45
Nominal current 16 A 16 A 16 A 16 A 16 A 16 A 40
Approvals per UL/CSA UL/CSA 35
Use group UL 1059 B C D B C D 30
Rated voltage 300 V 150 V 300 V 300 V 150 V 300 V 25
Nominal current UL 15 A 15 A 10 A 15 A 15 A 10 A 20
Nominal current CSA 15 A 15 A 10 A 15 A 15 A 10 A 15
The MCS MIDI connection system is UL 1977 approved and capable of up to 600 V for factory wiring. 10
Conductor data: 5
Connection technology CAGE CLAMP S 0 10 20 30 40 50 60 70 80 90 100105
®
Conductor size: solid 0.2–2.5 mm 2 Ambient operating temperature in °C
Conductor size: fine-stranded 0.2–2.5 mm 2 2-, 4-, 6-, 12- 24-pole Conductor rated current
Conductor size: fine-stranded 0.25–1.5 mm 2 (with insulated ferrule)
Conductor size: fine-stranded 0.25–2.5 mm 2 (with uninsulated ferrule)
AWG 24–12 12: THHN, THWN
Strip length 10–11 mm / 0.39–0.43 in.

Material data: MCS MIDI accessories: Pages:
Material group I Marking accessories 570 – 573
Insulating material Polyamide 6.6 (PA 6.6) Operating tools 470 – 471
Flammability rating per UL 94 0V Direct marking 362 – 364
Lower/Upper limit temperature -60 °C / +100 °C Insulation stop 473
Clamping spring material Chrome nickel spring steel (CrNi) Test plug adapter 478
Contact material Copper alloy Test plug, 2 mm Ø 568
Contact plating tin-plated Screws 576
MCS connectors are also available upon request with gold-plated or partially gold-plated contact surfaces. Strain relief plates 474 – 475
Depending on the version requested, “item no. suffix . . . /010-000” is added to the “basic item no.”
MCS — MULTI CONNECTION SYSTEM includes connectors without breaking capacity in accordance with
DIN EN 61984.
When used as intended, these connectors shall not be connected/disconnected when live or under load. The circuit
design should ensure header pins, which can be touched, are not live when unmated.

Additional approvals and corresponding ratings can be found at www.wago.com. For additional technical information, see Section 13.
