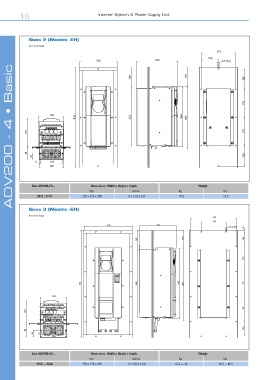

16 Inverter System & Power Supply Unit
Sizes 2 (Models -EH)
mm (inches)
210
105
230 250 7 (8x)
ADV200 - 4 • Basic
129 118 125
170
150
610 352 364 380
175 170
75
37 125
6 135
146
Size ADV200-EH-... Dimensions: Width x Height x Depth Weight
mm inches kg lbs
2075 - 2110 230 x 610 x 250 9.1 x 24 x 9.8 10.2 22.5
Sizes 3 (Models -EH)
mm (inches)
310
170
330 250
7 (x12)
10
132 119 100
170
730 463 479 497 170
180
170
158
100
92
46 6 168
180
Size ADV200-EH-... Dimensions: Width x Height x Depth Weight
mm inches kg lbs
3150 ... 3220 330 x 730 x 250 13 x 28.7 x 9.8 16.4 .... 22 36.2 ... 48.5
