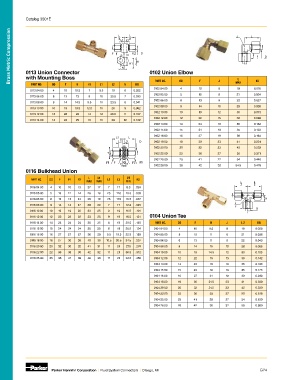

Page 242 - Brass, Composite and Thermoplastic Fittings and Valves

Catalog 3501E

Brass Metric Compression 0113 Union Connector 0102 Union Elbow

with Mounting Boss
L
KG
PART NO.
L2
KG
N
H
H1
L1
PART NO.
OD
F
19
4
0102 04 00 OD 10 F 5 J MAX 0.016
0113 04 00 4 10 10.5 7 9.5 19 6 0.022
0102 05 00 5 12 8 21 0.024
0113 06 00 6 13 13 9 10 20.5 7 0.033
0102 06 00 6 13 8 22 0.027
0113 08 00 8 14 14.5 9.5 11 23.5 8 0.041
0102 08 00 8 14 10 28 0.038
0113 10 00 10 19 19.5 12.5 11 26 9 0.082
0102 10 00 10 19 12 30 0.073
0113 12 00 12 22 22 14 12 26.5 11 0.107
0102 12 00 12 22 15 30 0.098
0113 14 00 14 24 25 16 11 28 12 0.122
0102 14 00 14 24 19 35 0.133
0102 15 00 15 24 19 35 0.122
0102 16 00 16 27 19 39 0.164
0102 18 00 18 30 23 41 0.231
0102 20 00 20 32 23 42 0.233
0102 22 00 22 36 27 50 0.371
0102 25 00 25 41 27 54 0.446
0102 28 00 28 42 32 54.5 0.478
0116 Bulkhead Union
L L1 OT
PART NO. OD F F1 F2 L2 L3 KG
MAX MAX MIN
0116 04 00 4 10 10 13 27 17 7 17 8.3 .024
0116 05 00 5 13 12 14 28 18 7.5 17.5 10.3 .035
0116 06 00 6 13 13 14 28 19 7.5 17.5 10.3 .037
0116 08 00 8 14 14 17 29 20 7 17 12.3 .045
0116 10 00 10 19 19 22 33 25 9 19 16.5 .101
0116 12 00 12 22 22 22 33 25 9 19 18.5 .121 0104 Union Tee
0116 14 00 14 24 24 24 35 25 8 18 20.5 .145 PART NO. OD F H J L 2 KG
0116 15 00 15 24 24 24 35 25 8 18 20.5 .134 0104 04 00 4 10 9.5 8 19 0.028
0116 16 00 16 27 27 27 36 28 9.5 19.5 22.5 .189 0104 05 00 5 12 11 8 21 0.036
0116 18 00 18 27 30 30 40 30 10.5 20.5 24.5 .237 0104 06 00 6 13 11 8 22 0.040
0116 20 00 20 32 30 32 41 31 11 21 27.5 .274 0104 08 00 8 14 15 10 28 0.055
0116 22 00 22 36 36 36 42 32 11 21 30.5 .372 0104 10 00 10 19 14.5 12 30 0.105
0116 25 00 25 36 41 38 46 36 11 21 33.5 .469 0104 12 00 12 22 15 15 30 0.142
0104 14 00 14 24 18 19 35 0.190
0104 15 00 15 24 18 19 35 0.175
0104 16 00 16 27 21 19 39 0.239
0104 18 00 18 30 21.5 23 41 0.330
0104 20 00 20 32 21.5 23 42 0.330
0104 22 00 22 36 29 27 50 0.518
0104 25 00 25 41 29 27 54 0.630
0104 28 00 28 42 30 32 55 0.660

Parker Hannifin Corporation | Fluid System Connectors | Otsego, MI G24
