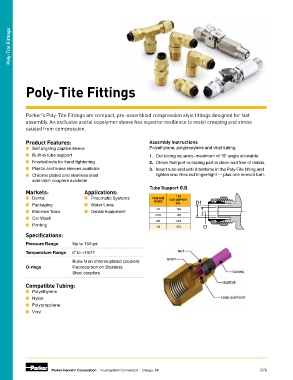

Page 244 - Brass, Composite and Thermoplastic Fittings and Valves

Poly-Tite Fittings

Poly-Tite Fittings

Parker’s Poly-Tite Fittings are compact, pre-assembled compression style fittings designed for fast
assembly. An exclusive acetal copolymer sleeve has superior resilience to resist creeping and stress
caused from compression.

Product Features: Assembly Instructions
■ Self aligning captive sleeve Polyethylene, polypropylene and vinyl tubing:
■ Built-in tube support 1. Cut tubing squarely–maximum of 15° angle allowable.
■ Knurled nuts for hand tightening 2. Check that port or mating part is clean and free of debris.
■ Plastic and brass sleeves available 3. Insert tube end until it bottoms in the Poly-Tite fitting and
■ Chrome plated and stainless steel tighten knurl/hex nut finger-tight — plus one wrench turn.
side latch couplers available
Tube Support O.D.
Markets: Applications:
* D1
■ Dental ■ Pneumatic Systems TUBE SIZE TUBE SUPPORT
INCHES D1
■ Packaging ■ Water Lines O.D.
■ Machine Tools ■ Dental Equipment 1/4 .168
5/16 .185
■ Car Wash
3/8 .248
■ Printing 1/2 .373 D
Specifications:

Pressure Range Up to 150 psi
Temperature Range 0˚ to +150˚F
Buna N on chrome plated couplers
O-rings Fluorocarbon on Stainless
Steel couplers

Compatible Tubing:
■ Polyethylene
■ Nylon
■ Polypropylene
■ Vinyl

Parker Hannifin Corporation | Fluid System Connectors | Otsego, MI G26
