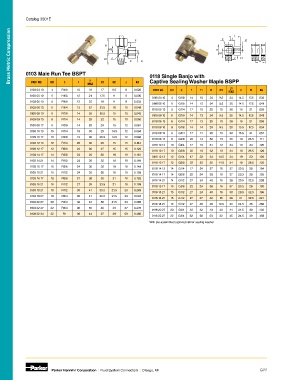

Page 240 - Brass, Composite and Thermoplastic Fittings and Valves

Catalog 3501E

Brass Metric Compression

0103 Male Run Tee BSPT
0118 Single Banjo with
Captive Sealing Washer Maple BSPP
H
F
C
PART NO.
OD
J
KG
H2
H1
MAX
L1
0103 04 10 4 R1/8 10 19 17 9.5 8 0.025 PART NO. OD C F F1 H H1 MAX L1 N KG
0103 05 10 5 R1/8 12 21 17.5 11 8 0.030
0118 04 10 4 G1/8 14 10 24 9.5 24 14.5 17.5 .038
0103 06 10 6 R1/8 13 22 18 11 8 0.033
0118 05 10 5 G1/8 14 12 24 9.5 25 14.5 17.5 .041
0103 06 13 6 R1/4 13 27 21.5 16 10 0.048
0118 05 13 5 G1/4 17 12 25 10 26 16 21 .058
0103 08 10 8 R1/8 14 28 18.5 15 10 0.045
0118 06 10 6 G1/8 14 13 24 9.5 25 14.5 17.5 .041
0103 08 13 8 R1/4 14 28 22 15 10 0.050
0118 06 13 6 G1/4 17 13 25 10 26 16 21 .056
0103 08 17 8 R3/8 14 28 24 15 12 0.061
0118 08 10 8 G1/8 14 14 24 9.5 28 15.5 17.5 .054
0103 10 13 10 R1/4 19 30 25 14.5 12 0.084
0118 08 13 8 G1/4 17 14 25 10 28 15.5 21 .057
0103 10 17 10 R3/8 19 30 25.5 14.5 12 0.092
0118 08 17 8 G3/8 22 14 32 13 30 18 26.5 .111
0103 12 13 12 R1/4 22 30 26 15 15 0.114
0118 10 13 10 G1/4 17 19 31 13 34 19 23 .120
0103 12 17 12 R3/8 22 30 27 15 15 0.120
0118 10 17 10 G3/8 22 19 32 13 34 19 26.5 .129
0103 14 17 14 R3/8 24 35 30 18 19 0.161
0118 12 13 12 G1/4 17 22 34 14.5 34 19 23 .126
0103 14 21 14 R1/2 24 35 32 18 19 0.169
0118 12 17 12 G3/8 22 22 35 14.5 34 19 26.5 .133
0103 15 17 15 R3/8 24 35 30 18 19 0.148
0118 14 13 14 G1/4 17 24 37 16 37 20.5 28 .154
0103 15 21 15 R1/2 24 35 32 18 19 0.158
0118 14 17 14 G3/8 22 24 38 16 37 20.5 28 .195
0103 16 17 16 R3/8 27 39 30 21 19 0.192
0118 14 21 14 G1/2 27 24 40 16 38 20.5 32.5 .208
0103 16 21 16 R1/2 27 39 33.5 21 19 0.199
0118 15 17 15 G3/8 22 24 38 16 37 20.5 28 .190
0103 18 21 18 R1/2 30 41 35.5 21.5 23 0.269
0118 15 21 15 G1/2 27 24 40 16 38 20.5 32.5 .198
0103 18 27 18 R3/4 30 41 36.5 21.5 23 0.282
0118 16 21 16 G1/2 27 27 42 16 38 21 32.5 .221
0103 20 27 20 R3/4 32 42 38 21.5 23 0.298
0118 18 21 18 G1/2 27 30 46 19.5 43 24.5 36 .366
0103 22 27 22 R3/4 36 50 40 29 27 0.435
0118 20 27 20 G3/4 32 32 49 20 44 24.5 39 .403
0108 22 34 22 R1 36 44 27 29 50 0.466
0118 22 27 22 G3/4 32 36 53 22 45 24.5 39 .459
With pre-assembled captive polymer sealing washer

Parker Hannifin Corporation | Fluid System Connectors | Otsego, MI G22
