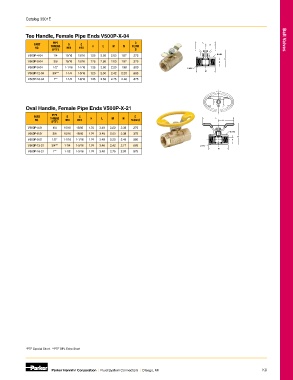

Page 319 - Brass, Composite and Thermoplastic Fittings and Valves

Catalog 3501E

Tee Handle, Female Pipe Ends V500P-X-04

PIPE D L Ball Valves
PART THREAD B C H L M N FLOW H
NO. [PTF] HEX HEX Ø
V500P-4-04 1/4 15/16 15/16 1.25 2.50 2.03 1.87 .375 B HEX
N
V500P-6-04 3/8 15/16 15/16 1.25 2.50 2.03 1.87 .375 D
V500P-8-04 1/2* 1-1/16 1-1/16 1.25 2.50 2.20 1.98 .500 C HEX
M
V500P-12-04 3/4** 1-1/4 1-5/16 1.25 2.50 2.42 2.20 .685
V500P-16-04 1** 1-1/2 1-9/16 1.25 2.50 2.75 2.48 .875

Oval Handle, Female Pipe Ends V500P-X-21

PART PIPE B C D L
NO. THREAD HEX HEX H L M N FLOW Ø H
[PTF]
V500P-4-21 1/4 15/16 15/16 1.74 3.49 2.03 2.38 .375
B HEX
V500P-6-21 3/8 15/16 15/16 1.74 3.49 2.03 2.38 .375
N
V500P-8-21 1/2* 1-1/16 1-1/16 1.74 3.49 2.20 2.49 .500 D
V500P-12-21 3/4** 1-1/4 1-5/16 1.74 3.48 2.42 2.71 .685 C HEX
M
V500P-16-21 1** 1-1/2 1-9/16 1.74 3.48 2.75 2.99 .875

*PTF Special Short. **PTF SPL Extra Short

Parker Hannifin Corporation | Fluid System Connectors | Otsego, MI K9
