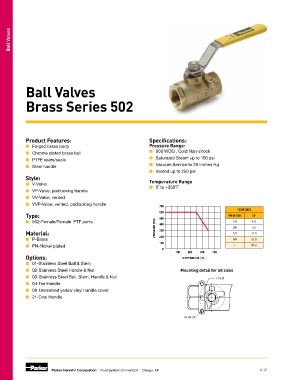

Page 322 - Brass, Composite and Thermoplastic Fittings and Valves

Ball Valves

Ball Valves

Brass Series 502

Product Features: Specifications:
■ Forged brass body Pressure Range:
■ Chrome plated brass ball ■ 600 WOG , Cold Non-shock
■ PTFE seats/seals ■ Saturated Steam up to 150 psi
■ Steel handle ■ Vacuum Service to 29 Inches Hg
■ Vented up to 250 psi
Style:
■ V-Valve Temperature Range
■ 0˚ to +350˚F
■ VP-Valve, padlocking handle
■ VV-Valve, vented
■ VVP-Valve, vented, padlocking handle 700
FLOW DATA
600
Type: 500 VALVE SIZE CV
■ 502-Female/Female PTF ports 400 1/4 4.0
3/8
5.8
Material: PRESSURE (PSI) 300 1/2 12.0
■ P-Brass 200 3/4 25.0
100
■ PN-Nickel plated 1 35.0
0
100 200 300 400
Options: TEMPERATURE (°F)
■ 01-Stainless Steel Ball & Stem
■ 02-Stainless Steel Handle & Nut Mounting detail for all sizes
■ 03-Stainless Steel Ball, Stem, Handle & Nut 1.15 Ø
■ 04-Tee Handle
■ 08-Unmarked yellow vinyl handle cover
■ 21-Oval Handle

10-24 2X

Parker Hannifin Corporation | Fluid System Connectors | Otsego, MI K12
