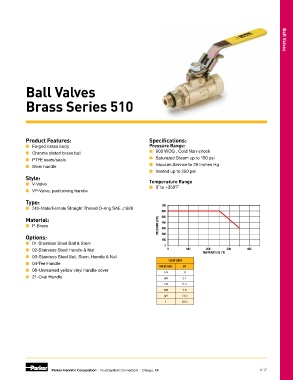

Ball Valves Ball Valves

Brass Series 510

Product Features: Specifications:
■ Forged brass body Pressure Range:
■ Chrome plated brass ball ■ 600 WOG , Cold Non-shock
■ PTFE seats/seals ■ Saturated Steam up to 150 psi
■ Steel handle ■ Vacuum Service to 29 Inches Hg
■ Vented up to 250 psi
Style:
■ V-Valve Temperature Range
■ 0˚ to +350˚F
■ VP-Valve, padlocking handle

Type: 700
■ 510-Male/Female Straight Thread O-ring SAE J1926
600
Material: 500
400
■ P-Brass PRESSURE (PSI) 300
Options: 200
100
■ 01-Stainless Steel Ball & Stem
0
■ 02-Stainless Steel Handle & Nut 0 100 200 300 400
TEMPERATURE (°F)
■ 03-Stainless Steel Ball, Stem, Handle & Nut
FLOW DATA
■ 04-Tee Handle
VALVE SIZE CV
■ 08-Unmarked yellow vinyl handle cover
1/4 .8
■ 21-Oval Handle 3/8 2.1
1/2 5.3
5/8 7.6
3/4 13.0
1 33.0

Parker Hannifin Corporation | Fluid System Connectors | Otsego, MI K17
