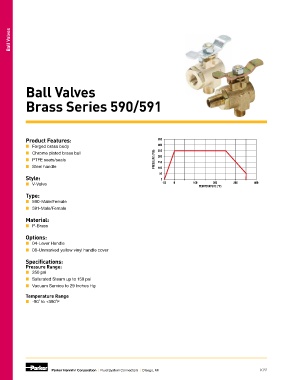

Page 332 - Brass, Composite and Thermoplastic Fittings and Valves
P. 332
Ball Valves
Ball Valves
Brass Series 590/591
Product Features: 350
■ Forged brass body 300
■ Chrome plated brass ball 250
200
■ PTFE seats/seals PRESSURE (PSI) 150
■ Steel handle 100
50
Style: 0
200
■ V-Valve -50 0 100 TEMPERATURE (°F) 300 400
Type:
■ 590-Male/Female
■ 591-Male/Female
Material:
■ P-Brass
Options:
■ 04-Lever Handle
■ 08-Unmarked yellow vinyl handle cover
Specifications:
Pressure Range:
■ 250 psi
■ Saturated Steam up to 150 psi
■ Vacuum Service to 29 Inches Hg
Temperature Range
■ -50˚ to +350˚F
Parker Hannifin Corporation | Fluid System Connectors | Otsego, MI K22
