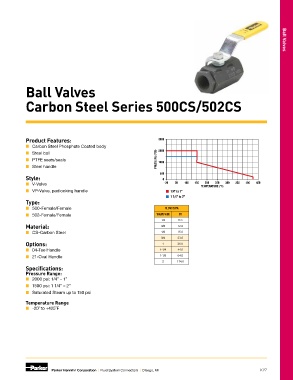

Page 337 - Brass, Composite and Thermoplastic Fittings and Valves

Ball Valves Ball Valves

Carbon Steel Series 500CS/502CS

Product Features: 3000
■ Carbon Steel Phosphate Coated body
■ Steel ball 2000
■ PTFE seats/seals PRESSURE (PSI) 1000
■ Steel handle
500
Style: 0
250
200
■ V-Valve -20 50 100 150 TEMPERATURE (°F) 300 350 400 450
■ VP-Valve, padlocking handle 1/4" to 1"
1 1/4" to 2"
Type:
■ 500-Female/Female FLOW DATA
■ 502-Female/Female VALVE SIZE CV
1/4 6.0
Material: 3/8 12.8
■ CS-Carbon Steel 1/2 15.0
3/4 23.0
Options: 1 36.0
■ 04-Tee Handle 1-1/4 44.0
■ 21-Oval Handle 1-1/2 64.0
2 114.0
Specifications:
Pressure Range:
■ 2000 psi: 1/4” – 1”
■ 1500 psi: 1 1/4” – 2”
■ Saturated Steam up to 150 psi
Temperature Range
■ -20˚ to +425˚F

Parker Hannifin Corporation | Fluid System Connectors | Otsego, MI K27
