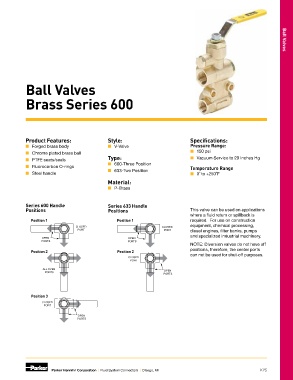

Page 335 - Brass, Composite and Thermoplastic Fittings and Valves

Ball Valves Ball Valves

Brass Series 600

Product Features: Style: Specifications:
■ Forged brass body ■ V-Valve Pressure Range:
■ Chrome plated brass ball ■ 150 psi
■ PTFE seats/seals Type: ■ Vacuum Service to 29 Inches Hg
■ 600-Three Position
■ Fluorocarbon O-rings Temperature Range
■ 633-Two Position
■ Steel handle ■ 0˚ to +250˚F
Material:
■ P-Brass

Series 600 Handle Series 633 Handle
Positions Positions This valve can be used on applications
where a fluid return or spillback is
Position 1 Position 1 required. For use on construction
equipment, chemical processing,
CLOSED CLOSED
PORT PORT diesel engines, filter banks, pumps
and specialized industrial machinery.
OPEN OPEN
PORTS PORTS
NOTE: Diversion valves do not have off
Position 2 Position 2 positions, therefore, the center ports
can not be used for shut-off purposes.
CLOSED
PORT
ALL OPEN OPEN
PORTS
PORTS

Position 3
CLOSED
PORT

OPEN
PORTS
