Page 339 - Brass, Composite and Thermoplastic Fittings and Valves

Catalog 3501E

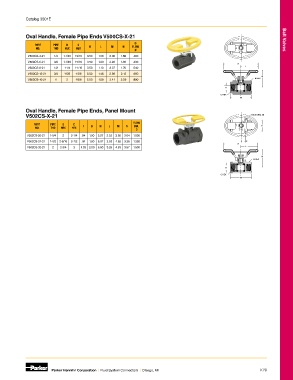

Oval Handle, Female Pipe Ends V500CS-X-21
D Ball Valves
PART PIPE B C H L M N FLOW
NO. THD HEX HEX
Ø
V500CS-4-21 1/4 1-1/16 15/16 3.50 1.00 2.00 1.66 .400
V500CS-6-21 3/8 1-1/16 15/16 3.50 1.00 2.00 1.66 .400
H
V500CS-8-21 1/2 1-1/4 1-1/16 3.50 1.13 2.37 1.76 .540 L
V500CS-12-21 3/4 1-5/8 1-3/8 5.00 1.46 2.90 2.13 .680
N
V500CS-16-21 1 2 1-5/8 5.00 1.58 3.41 2.29 .880 B HEX
D
C HEX
M

Oval Handle, Female Pipe Ends, Panel Mount
V502CS-X-21 1/4-20 UNC 2B

FLOW
PART PIPE B C F G H L M N DIA. G
NO. THD HEX HEX D
V502CS-20-21 1-1/4 2 2-1/4 .94 1.50 5.07 2.53 3.80 3.04 1.000
V502CS-24-21 1-1/2 2-5/16 2-1/2 .94 1.50 5.07 2.53 4.55 3.26 1.250 F
H
V502CS-32-21 2 2-3/4 3 1.03 2.00 6.50 3.25 4.83 3.57 1.500 L
N
B HEX
D
C HEX
M
