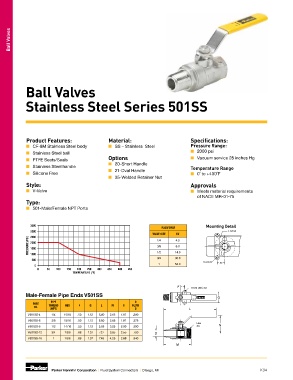

Page 344 - Brass, Composite and Thermoplastic Fittings and Valves

Ball Valves

Ball Valves

Stainless Steel Series 501SS

Product Features: Material: Specifications:
■ CF-8M Stainless Steel body ■ SS – Stainless Steel Pressure Range:
■ Stainless Steel ball ■ 2000 psi
■ PTFE Seats/Seals Options ■ Vacuum service 28 inches Hg
■ 20-Short Handle
■ Stainless Steel handle Temperature Range
■ 21-Oval Handle
■ Silicone Free ■ 0˚ to +400˚F
■ 35-Welded Retainer Nut
Style: Approvals
■ V-Valve ■ Meets material requirements
of NACE MR-01-75
Type:
■ 501-Male/Female NPT Ports

3500 Mounting Detail
FLOW DATA
3000 1.125 Ø
VALVE SIZE CV
2500
PRESSURE (PSI) 2000 1/4 4.0
3/8
6.0
1500
1/2
1000
35.0
3/4 14.0
500
1 54.0 10-24 2X .50
0
0 50 100 150 200 250 300 350 400 450
TEMPERATURE (°F)
F 10-24 UNC 2B
Male-Female Pipe Ends V501SS ON
OFF G
PART PIPE D
NO. THREAD HEX F G L M N FLOW
[NPT] Ø L
V501SS-4 1/4 15/16 .50 1.12 5.60 2.65 1.97 .280
V501SS-6 3/8 15/16 .50 1.12 5.60 2.65 1.97 .375
Hex
V501SS-8 1/2 1-1/16 .50 1.12 5.85 3.05 2.00 .500 2X N
V501SS-12 3/4 1-3/8 .88 1.37 7.27 3.85 2.55 .720 D
V501SS-16 1 1-5/8 .88 1.37 7.48 4.25 2.68 .940
M

Parker Hannifin Corporation | Fluid System Connectors | Otsego, MI K34
