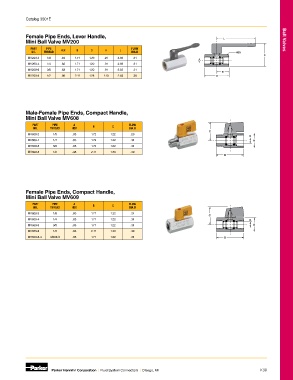

Page 349 - Brass, Composite and Thermoplastic Fittings and Valves

Catalog 3501E

Female Pipe Ends, Lever Handle,
Mini Ball Valve MV200 L Ball Valves
PART PIPE FLOW
NO. THREAD HEX B C H L DIA.D HEX
C
MV200-2 1/8 .83 1.71 1.20 .91 2.83 .31
D
MV200-4 1/4 .83 1.71 1.20 .91 2.83 .31
MV200-6 3/8 .83 1.71 1.20 .91 2.83 .31
H
MV200-8 1/2 .98 2.11 1.28 1.10 2.83 .39 B

Male-Female Pipe Ends, Compact Handle,
Mini Ball Valve MV608
PART PIPE A FLOW
NO. THREAD HEX B C DIA.D
C
MV608-2 1/8 .83 1.72 1.22 .20
D
MV608-4 1/4 .83 1.72 1.22 .31 A
MV608-6 3/8 .83 1.72 1.22 .31
MV608-8 1/2 .98 2.11 1.30 .39
B

Female Pipe Ends, Compact Handle,
Mini Ball Valve MV609

PART PIPE A FLOW
NO. THREAD HEX B C DIA.D
MV609-2 1/8 .83 1.71 1.22 .24
C
MV609-4 1/4 .83 1.71 1.22 .31 D
MV609-6 3/8 .83 1.71 1.22 .31 A
MV609-8 1/2 .98 2.11 1.30 .39
MV609-6-4 3/8X1/4 .83 1.71 1.22 .31 B

Parker Hannifin Corporation | Fluid System Connectors | Otsego, MI K39
