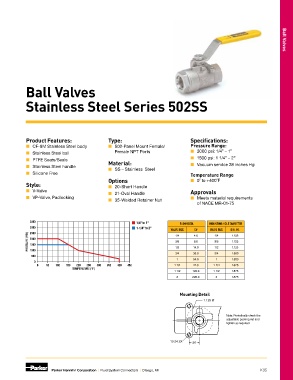

Page 345 - Brass, Composite and Thermoplastic Fittings and Valves

Ball Valves Ball Valves

Stainless Steel Series 502SS

Product Features: Type: Specifications:
■ CF-8M Stainless Steel body ■ 502-Panel Mount Female/ Pressure Range:
■ Stainless Steel ball Female NPT Ports ■ 2000 psi: 1/4” – 1”
■ PTFE Seats/Seals Material: ■ 1500 psi: 1 1/4” – 2”
■ Stainless Steel handle ■ Vacuum service 28 inches Hg
■ SS – Stainless Steel
■ Silicone Free Temperature Range
Options ■ 0˚ to +400˚F
Style: ■ 20-Short Handle
■ V-Valve Approvals
■ 21-Oval Handle
■ VP-Valve, Padlocking ■ Meets material requirements
■ 35-Welded Retainer Nut
of NACE MR-01-75

3500 1/4" to 1" FLOW DATA MOUNTING HOLE DIAMETER
3000 1-1/4" to 2" VALVE SIZE CV VALVE SIZE DIA. IN.
2500
PRESSURE (PSI) 2000 1/4 14.0 1/4 1.125
4.0
6.0
3/8
1.125
3/8
1500
1/2
1/2
1.125
1000
3/4 35.0 3/4 1.500
500
1 54.0 1 1.500
0
0 50 100 150 200 250 300 350 400 450 1 1/4 74.0 1 1/4 1.875
TEMPERATURE (°F)
1 1/2 120.0 1 1/2 1.875
2 226.0 2 1.875
Mounting Detail
1.125 Ø
Note: Periodically check the
adjustable packing nut and
tighten as required.

10-24 2X .50

Parker Hannifin Corporation | Fluid System Connectors | Otsego, MI K35
