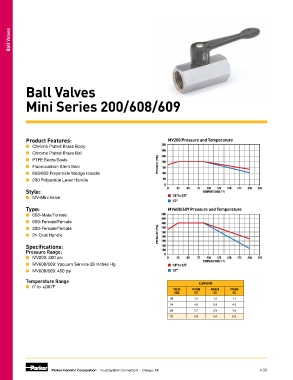

Page 348 - Brass, Composite and Thermoplastic Fittings and Valves

Ball Valves

Ball Valves

Mini Series 200/608/609

Product Features: MV200 Pressure and Temperature
■ Chrome Plated Brass Body 350
300
■ Chrome Plated Brass Ball 250
■ PTFE Seats/Seals 200
■ Fluorocarbon Stem Seal PRESSURE (PSI) 150
■ 608/609 Polyamide Wedge Handle 100
■ 200 Polyamide Lever Handle 50
0
100
125
Style: 0 25 50 75 TEMPERATURE (°F) 150 175 200 225
■ MV-Mini Valve 1/8" to 3/8"
1/2"
Type: MV608/609 Pressure and Temperature
■ 608-Male/Female 500
450
■ 609-Female/Female 400
■ 200-Female/Female 350
300
■ 21-Oval Handle PRESSURE (PSI) 250
200
Specifications: 150
Pressure Range: 100 0
■ MV200: 200 psi 0 25 50 75 100 125 150 175 200 225
TEMPERATURE (°F)
■ MV608/609: Vacuum Service 28 Inches Hg 1/8" to 3/8"
■ MV608/609: 450 psi 1/2"
Temperature Range FLOW DATA
■ 0˚ to +200˚F
VALVE MV200 MV608 MV609
SIZE CV CV CV
1/8 1.3 1.2 1.4
1/4 4.0 5.8 4.3
3/8 3.7 3.9 3.6
1/2 5.8 5.6 6.0

Parker Hannifin Corporation | Fluid System Connectors | Otsego, MI K38
