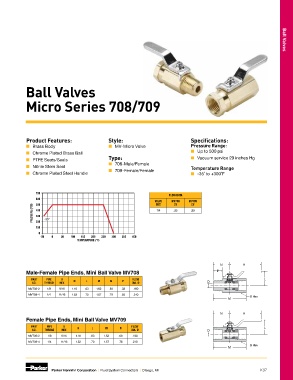

Page 347 - Brass, Composite and Thermoplastic Fittings and Valves

Ball Valves Ball Valves

Micro Series 708/709

Product Features: Style: Specifications:
■ Brass Body ■ MV-Micro Valve Pressure Range:
■ Chrome Plated Brass Ball ■ Up to 500 psi
■ PTFE Seats/Seals Type: ■ Vacuum service 29 inches Hg
■ 708-Male/Female
■ Nitrile Stem Seal Temperature Range
■ 709-Female/Female
■ Chrome Plated Steel Handle ■ -35˚ to +300˚F

700
FLOW DATA
600
VALVE MV708 MV709
SIZE
CV
CV
500
PRESSURE (PSI) 400 -35° 1/4 .95 .95
300
200
100
0
-50 0 50 100 150 200 250 300 350 400
TEMPERATURE (°F)

N H
Male-Female Pipe Ends, Mini Ball Valve MV708 P
PART PIPE B H L M N P FLOW L
NO. THREAD HEX DIA. D D
MV708-2 1/8 9/16 1.18 .63 1.62 .93 .38 .180
MV708-4 1/4 11/16 1.52 .70 1.57 .79 .50 .210 B Hex
M

N H
Female Pipe Ends, Mini Ball Valve MV709

PART PIPE B H L M N FLOW L
NO. THREAD HEX DIA. D D
MV709-2 1/8 9/16 1.18 .63 1.52 .68 .180
MV709-4 1/4 11/16 1.52 .70 1.57 .76 .210
B Hex
M

Parker Hannifin Corporation | Fluid System Connectors | Otsego, MI K37
