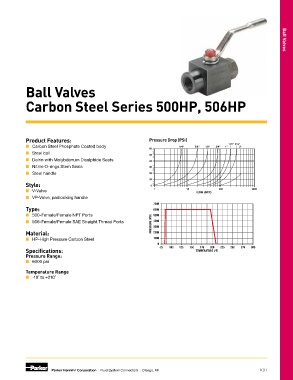

Ball Valves Ball Valves

Carbon Steel Series 500HP, 506HP

Product Features: Pressure Drop (PSI)
■ Carbon Steel Phosphate Coated body 1/4" 3/8" 1/2" 3/4" 1" 1 1 /4" 1 1 /2" 2"
60
■ Steel ball
50
■ Delrin with Molybdenum Disulphide Seats 40
■ Nitrile O-rings Stem Seals 30
■ Steel handle 20
10
Style: 0
■ V-Valve 1 10 FLOW (GPM) 100 1000
■ VP-Valve, padlocking handle
7000
Type: 6000
■ 500-Female/Female NPT Ports 5000
■ 506-Female/Female SAE Straight Thread Ports PRESSURE (PSI) 4000
3000
Material: 2000
■ HP-High Pressure Carbon Steel 1000
0
-25 100 125 150 175 200 225 250 275 300
Specifications: TEMPERATURE (°F)
Pressure Range:
■ 6000 psi
Temperature Range
■ -10˚ to +210˚

Parker Hannifin Corporation | Fluid System Connectors | Otsego, MI K31
