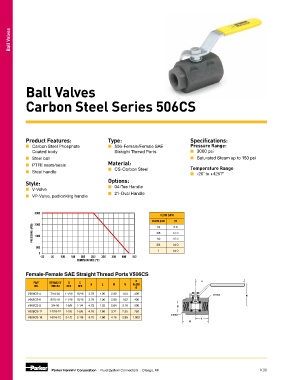

Ball Valves

Ball Valves

Carbon Steel Series 506CS

Product Features: Type: Specifications:
■ Carbon Steel Phosphate ■ 506-Female/Female SAE Pressure Range:
Coated body Straight Thread Ports ■ 3000 psi
■ Steel ball ■ Saturated Steam up to 150 psi
■ PTFE seats/seals Material:
■ CS-Carbon Steel Temperature Range
■ Steel handle
■ -20˚ to +425˚F
Style: Options:
■ V-Valve ■ 04-Tee Handle
■ 21-Oval Handle
■ VP-Valve, padlocking handle

3000
FLOW DATA
VALVE SIZE 6.0
CV
2000
PRESSURE (PSI) 1000 3/8 12.0
1/4
1/2
15.0
3/4 34.0
500
1 54.0
0
-20 50 100 150 200 250 300 350 400 450
TEMPERATURE (°F)
Female-Female SAE Straight Thread Ports V506CS
PART STRAIGHT B C D H
NO. THREAD HEX HEX H L M N FLOW
Ø
V506CS-4 7/16-20 1-1/16 15/16 3.78 1.00 2.00 1.63 .400 B HEX N
V506CS-6 9/16-18 1-1/16 15/16 3.78 1.00 2.00 1.63 .400
V506CS-8 3/4-16 1-5/8 1-1/4 4.78 1.32 2.84 2.16 .500 D
V506CS-12 1-1/16-12 1-7/8 1-5/8 4.78 1.66 3.71 2.35 .750
C HEX
V506CS-16 1-5/16-12 2-1/2 2-1/8 6.10 1.88 4.15 2.85 1.000
L
M

Parker Hannifin Corporation | Fluid System Connectors | Otsego, MI K30
