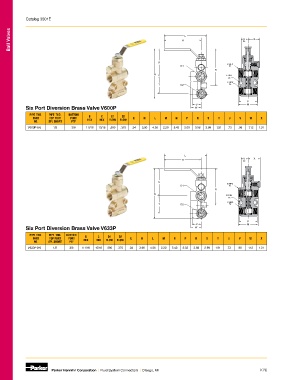

Page 336 - Brass, Composite and Thermoplastic Fittings and Valves
P. 336
Catalog 3501E
Ball Valves H L U 2x X
S
B HEX
D1 3x
R
N
E DIA.
2x
C HEX
T D2 3x
P
Six Port Diversion Brass Valve V600P W V M
PIPE THD. PIPE THD. BOTTOM
PART TOP PORT PORT B C D1 D2 E H L M N P R S T U V W X
NO. SPL SHORT PTF HEX HEX FLOW FLOW
V600P-8-6 1/2 3/8 1 1/16 15/16 .500 .375 .34 3.96 4.56 2.20 5.43 2.03 3.98 2.99 1.91 .73 .98 1.12 1.31
L
U X
H 2x
S
B HEX
D1 3x
R
N
E DIA.
2x
C HEX
T D2 3x
P
V M
Six Port Diversion Brass Valve V633P W
PIPE THD. PIPE THD. BOTTOM
PART TOP PORT PORT B C D1 D2 E H L M N P R S T U V W X
NO. SPL SHORT PTF HEX HEX FLOW FLOW
V633P-8-6 1/2 3/8 1 1/16 15/16 .500 .375 .34 3.96 4.56 2.20 5.43 2.03 3.98 2.99 1.91 .73 .98 1.12 1.31
Parker Hannifin Corporation | Fluid System Connectors | Otsego, MI K26
