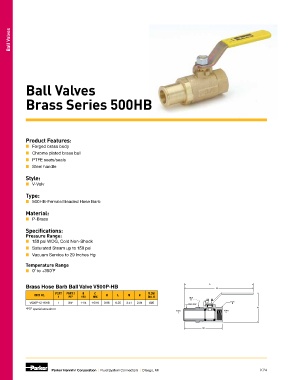

Page 334 - Brass, Composite and Thermoplastic Fittings and Valves

Ball Valves

Ball Valves

Brass Series 500HB

Product Features:
■ Forged brass body
■ Chrome plated brass ball
■ PTFE seats/seals
■ Steel handle
Style:
■ V-Valv

Type:
■ 500HB-Female/Beaded Hose Barb
Material:
■ P-Brass

Specifications:
Pressure Range:
■ 150 psi WOG, Cold Non-Shock
■ Saturated Steam up to 150 psi
■ Vacuum Service to 29 Inches Hg
Temperature Range
■ 0˚ to +350˚F

Brass Hose Barb Ball Valve V500P-HB L H
PART NO. PORT PORT 2 B C H L M N FLOW
1 PTF HEX HEX DIA. D HEX
C
V500P-12-16HB 1 3/4* 1-1/4 1-5/16 3.96 6.25 3.41 2.81 .685 HEX
END CAP B
*PTF special extra short N
PORT PORT
1 2
M

Parker Hannifin Corporation | Fluid System Connectors | Otsego, MI K24
