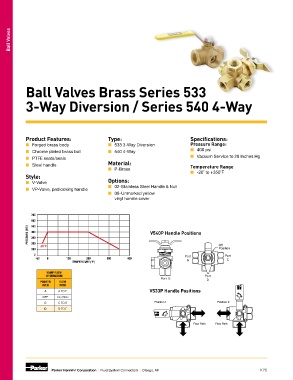

Page 330 - Brass, Composite and Thermoplastic Fittings and Valves

Ball Valves

Ball Valves Brass Series 533

3-Way Diversion / Series 540 4-Way

Product Features: Type: Specifications:
■ Forged brass body ■ 533 3-Way Diversion Pressure Range:
■ Chrome plated brass ball ■ 540 4-Way ■ 400 psi
■ PTFE seats/seals ■ Vacuum Service to 29 Inches Hg
■ Steel handle Material: Temperature Range
■ P-Brass
■ -20˚ to +350˚F
Style:
■ V-Valve Options:
■ 02-Stainless Steel Handle & Nut
■ VP-Valve, padlocking handle
■ 08-Unmarked yellow
vinyl handle cover

700
600
500
PRESSURE (PSI) 400 V540P Handle Positions

300
200
-20 °F Off
100 Position
0 Port Port
-50 0 100 200 300 400 C
TEMPERATURE (°F) A
V540P FLOW
INFORMATION Port
Port E
POINTER FLOW D
OVER PATH
A A TO E V533P Handle Positions
OFF CLOSED
C C TO E Position 1 Position 2
D D TO E

Flow Path Flow Path

Parker Hannifin Corporation | Fluid System Connectors | Otsego, MI K20
