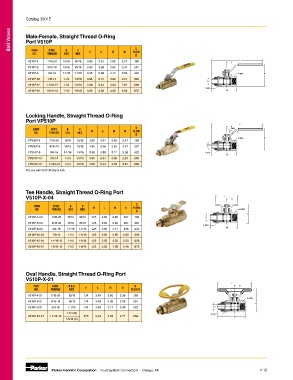

Page 328 - Brass, Composite and Thermoplastic Fittings and Valves

Catalog 3501E

Ball Valves Male-Female, Straight Thread O-Ring

Port V510P
D
B
PART
STRT.
C
NO. THREAD HEX HEX H L M N FLOW
Ø
V510P-4 7/16-20 15/16 15/16 3.96 5.61 2.85 2.47 .188 H L
V510P-6 9/16-18 15/16 15/16 3.96 5.68 2.92 2.47 .281
V510P-8 3/4-16 1-1/16 1-1/16 3.96 5.88 3.17 2.58 .422 B HEX N
V510P-10 7/8-14 1-1/4 1-5/16 3.96 6.31 3.90 2.81 .500
D
V510P-12 1-1/16-12 1-1/4 1-5/16 3.96 6.44 4.03 2.81 .656
C HEX
V510P-16 1-5/16-12 1-1/2 1-9/16 3.96 6.56 4.28 3.08 .875 M

Locking Handle, Straight Thread O-Ring
Port VP510P
L
D H
PART STRT. B C H L M N FLOW .33Ø
NO. THREAD HEX HEX
Ø
B HEX N
VP510P-4 7/16-20 15/16 15/16 3.96 5.61 2.85 2.47 .188
VP510P-6 9/16-18 15/16 15/16 3.96 5.68 2.92 2.47 .281 D
VP510P-8 3/4-16 1-1/16 1-1/16 3.96 5.88 3.17 2.58 .422 C HEX
M
VP510P-10 7/8-14 1-1/4 1-5/16 3.96 6.31 3.90 2.81 .500
VP510P-12 1-1/16-12 1-1/4 1-5/16 3.96 6.44 4.03 2.81 .656
For use with 5/16" Ø shank lock

Tee Handle, Straight Thread O-Ring Port
V510P-X-04 L H
D
PART STRT. B C H L M N FLOW
NO. THREAD HEX HEX Ø B HEX
N
V510P-4-04 7/16-20 15/16 15/16 1.25 2.50 2.85 1.87 .188 D
V510P-6-04 9/16-18 15/16 15/16 1.25 2.50 2.92 1.87 .281
C HEX
V510P-8-04 3/4-16 1-1/16 1-1/16 1.25 2.50 3.17 1.98 .422 M
V510P-10-04 7/8-14 1-1/4 1-5/16 1.25 2.50 3.90 2.20 .500
V510P-12-04 1-1/16-12 1-1/4 1-5/16 1.25 2.50 4.03 2.20 .656
V510P-16-04 1-5/16-12 1-1/2 1-9/16 1.25 2.50 4.28 2.48 .875

Oval Handle, Straight Thread O-Ring Port
V510P-X-21
L
PART STRT. B & C D H
NO. THREAD HEX H L M N FLOW Ø
V510P-4-21 7/16-20 15/16 1.74 3.49 2.85 2.38 .188
B HEX
V510P-6-21 9/16-18 15/16 1.74 3.49 2.92 2.38 .281
N
V510P-8-21 3/4-16 1 1/16 1.74 3.49 3.17 2.49 .422 D
1-1/4 (B) C HEX
V510P-12-21 1-1/16-12 1.75 3.49 4.03 2.71 .656 M
1-5/16 (C)
