Ball Valves

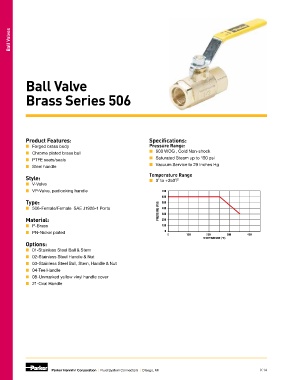

Ball Valve

Brass Series 506

Product Features: Specifications:
■ Forged brass body Pressure Range:
■ Chrome plated brass ball ■ 600 WOG , Cold Non-shock
■ PTFE seats/seals ■ Saturated Steam up to 150 psi
■ Steel handle ■ Vacuum Service to 29 Inches Hg
Style: Temperature Range
0˚ to +350˚F
■
■ V-Valve
■ VP-Valve, padlocking handle 700
600
Type: 500
■ 506-Female/Female SAE J1926-1 Ports PRESSURE (PSI) 400
300
Material: 200
■ P-Brass 100
■ PN-Nickel plated 0 0 100 200 300 400
TEMPERATURE (°F)
Options:
■ 01-Stainless Steel Ball & Stem
■ 02-Stainless Steel Handle & Nut
■ 03-Stainless Steel Ball, Stem, Handle & Nut
■ 04-Tee Handle
■ 08-Unmarked yellow vinyl handle cover
■ 21-Oval Handle

Parker Hannifin Corporation | Fluid System Connectors | Otsego, MI K14
