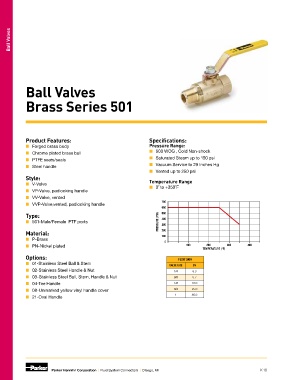

Page 320 - Brass, Composite and Thermoplastic Fittings and Valves

Ball Valves

Ball Valves

Brass Series 501

Product Features: Specifications:
■ Forged brass body Pressure Range:
■ Chrome plated brass ball ■ 600 WOG , Cold Non-shock
■ PTFE seats/seals ■ Saturated Steam up to 150 psi
■ Steel handle ■ Vacuum Service to 29 Inches Hg
■ Vented up to 250 psi
Style:
■ V-Valve Temperature Range
■ 0˚ to +350˚F
■ VP-Valve, padlocking handle
■ VV-Valve, vented
■ VVP-Valve,vented, padlocking handle 700
600
Type: 500
400
■ 501-Male/Female PTF ports PRESSURE (PSI) 300

Material: 200
100
■ P-Brass
0
■ PN-Nickel plated 100 200 300 400
TEMPERATURE (°F)
Options: FLOW DATA
■ 01-Stainless Steel Ball & Stem VALVE SIZE CV
■ 02-Stainless Steel Handle & Nut 1/4 6.3
■ 03-Stainless Steel Ball, Stem, Handle & Nut 3/8 5.7
■ 04-Tee Handle 1/2 10.0
■ 08-Unmarked yellow vinyl handle cover 3/4 25.0
■ 21-Oval Handle 1 35.0

Parker Hannifin Corporation | Fluid System Connectors | Otsego, MI K10
