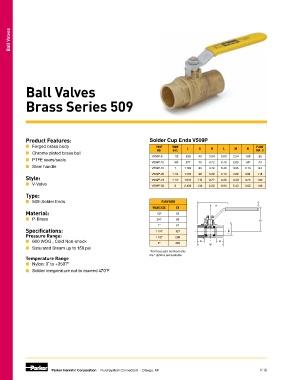

Page 326 - Brass, Composite and Thermoplastic Fittings and Valves
P. 326
Ball Valves
Ball Valves
Brass Series 509
Product Features: Solder Cup Ends V509P
■ Forged brass body PART TUBE FLOW
NO. SIZE E G H L M N DIA. D
■ Chrome plated brass ball
V509P-8 1/2 .630 .49 3.94 5.00 2.24 1.69 .55
■ PTFE seats/seals
V509P-12 3/4 .877 .75 4.72 6.10 2.85 1.97 .75
■ Steel handle V509P-16 1 1.128 .90 4.72 6.40 3.35 2.13 .94
V509P-20 1 1/4 1.378 .96 6.22 8.13 3.82 3.01 1.18
Style: V509P-24 1 1/2 1.628 1.10 6.22 8.46 4.49 3.25 1.50
■ V-Valve V509P-32 2 2.128 1.34 6.22 8.94 5.43 3.52 1.89
Type:
■ 509-Solder Ends FLOW DATA L
H
VALVE SIZE CV
Material: 1/2" 26
■ P-Brass 3/4" 69 N
E
1" 91
Specifications: 1 1/4" 127 D
Pressure Range: 1 1/2" 299
■ 600 WOG , Cold Non-shock 2" 425 G M G
■ Saturated Steam up to 150 psi
*For these part numbers only
the * options are available.
Temperature Range
■ Nylon: 0˚ to +350˚F
■ Solder temperature not to exceed 470˚F
