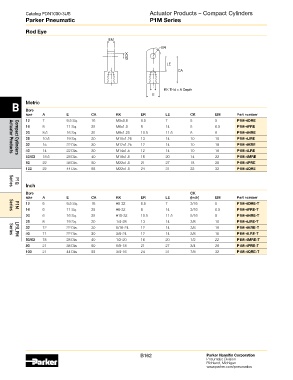

Catalog PDN1000-3US Actuator Products – Compact Cylinders
Parker Pneumatic P1M Series

Rod Eye

EM
ER
ØCK
LE
CA

KK Th'd x A Depth
E
B Metric
Bore
size A E CA KK ER LE CK EM Part number
12 7 9.5 Sq. 16 M5x0.8 6.5 7 5 5 P1M-4DRE
16 8 11 Sq. 25 M6x1.0 8 14 5 6.5 P1M-4FRE
20 8.5 16 Sq. 25 M8x1.25 10.5 11.5 8 8 P1M-4HRE
25 10.5 19 Sq. 30 M10x1.25 13 14 10 10 P1M-4JRE
32 15 22 Dia. 30 M12x1.25 12 14 10 18 P1M-4KRE
40 14 22 Dia. 30 M14x1.5 12 14 10 18 P1M-4LRE
Actuator Products
50/63 18.5 28 Dia. 40 M18x1.5 16 20 14 22 P1M-4MRE
Compact Cylinders
80 22 38 Dia. 50 M22x1.5 21 27 18 28 P1M-4PRE
100 22 44 Dia. 55 M22x1.5 24 31 22 32 P1M-4QRE

Inch
P1Q
Series
Bore CK
size A E CA KK ER LE (inch) EM Part number
12 6 9.5 Sq. 16 #8-32 6.5 7 3/16 5 P1M-4DRE-T
16 6 11 Sq. 25 #8-32 8 14 3/16 6.5 P1M-4FRE-T
P1M
Series
20 6 16 Sq. 25 #10-32 10.5 11.5 5/16 8 P1M-4HRE-T
25 8 19 Sq. 30 1/4-28 13 14 3/8 10 P1M-4JRE-T
32 12 22 Dia. 30 5/16-24 12 14 3/8 18 P1M-4KRE-T
40 11 22 Dia. 30 3/8-24 12 14 3/8 18 P1M-4LRE-T
Series
50/63 18 28 Dia. 40 1/2-20 16 20 1/2 22 P1M-4MRE-T
LP/LPM
80 21 38 Dia. 50 5/8-18 21 27 3/4 28 P1M-4PRE-T
100 21 44 Dia. 55 3/4-16 24 31 7/8 32 P1M-4QRE-T
