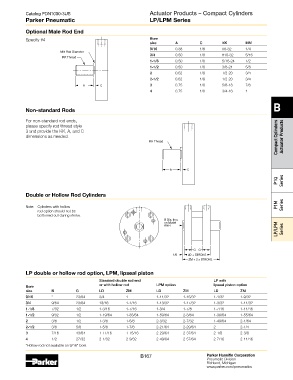

Catalog PDN1000-3US Actuator Products – Compact Cylinders
Parker Pneumatic LP/LPM Series

Optional Male Rod End

Specify #4 Bore
size A C KK MM
9/16 0.38 1/8 #8-32 1/4
MM Rod Diameter
3/4 0.50 1/8 #10-32 5/16
KK Thread
1-1/8 0.50 1/8 5/16-24 1/2
1-1/2 0.50 1/8 3/8-24 5/8
2 0.62 1/8 1/2-20 3/4
2-1/2 0.62 1/8 1/2-20 3/4
A C 3 0.75 1/8 5/8-18 7/8
4 0.75 1/8 3/4-16 1

B
Non-standard Rods

For non-standard rod ends,
please specify rod thread style
3 and provide the KK, A, and C
dimensions as needed. Compact Cylinders Actuator Products
KK Thread

A C
P1Q Series

Double or Hollow Rod Cylinders
P1M Series
Note: Cylinders with hollow
rod option should not be
bottomed out during stroke.
B Dia. thru
LP/LPM Series
on Model
KNH

G G
1/8 LD + STROKE
ZM + 2 x STROKE

LP double or hollow rod option, LPM, lipseal piston
Standard double rod end LP with
or with hollow rod LPM option lipseal piston option
Bore
size B G LD ZM LD ZM LD ZM
9/16 * 23/64 3/4 1 1-11/32 1-15/32 1-1/32 1-9/32
3/4 9/64 23/64 13/16 1-1/16 1-13/32 1-17/32 1-3/32 1-11/32
1-1/8 7/32 1/2 1-3/16 1-7/16 1-3/4 1-7/8 1-7/16 1-11/16
1-1/2 9/32 1/2 1-19/64 1-35/64 1-59/64 2-3/64 1-39/64 1-55/64
2 3/8 1/2 1-3/8 1-5/8 2-3/32 2-7/32 1-49/64 2-1/64
2-1/2 3/8 5/8 1-5/8 1-7/8 2-21/64 2-29/64 2 2-1/4
3 7/16 43/64 1-11/16 1-15/16 2-29/64 2-37/64 2-1/8 2-3/8
4 1/2 27/32 2-1/32 2-9/32 2-49/64 2-57/64 2-7/16 2-11/16
*Hollow rod not available on 9/16" bore.
