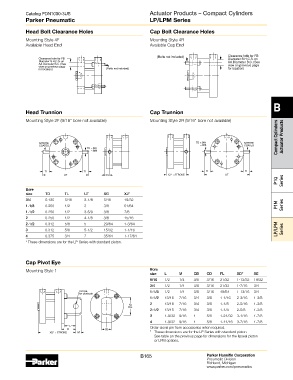

Catalog PDN1000-3US Actuator Products – Compact Cylinders
Parker Pneumatic LP/LPM Series

Head Bolt Clearance Holes Cap Bolt Clearance Holes

Mounting Style 4F Mounting Style 4R
Available Head End Available Cap End

(Bolts not included) Clearance hole for FB
Clearance hole for FB Diameter S.H.C.S. on
Diameter S.H.C.S. on AA Diameter B.C. (See
AA Diameter B.C. (See view on previous page
view on previous page
for location) (Bolts not included) for location)

B
Head Trunnion Cap Trunnion

Mounting Style 2F (9/16" bore not available) Mounting Style 2R (9/16" bore not available)
Compact Cylinders Actuator Products

NITRITE TD +.001 NITRITE
COATED –.000 COATED
TD +.001
–.000

TL TL TL TL
UT XG XJ* + STROKE UT
P1Q Series

Bore
size TD TL UT XG XJ*
3/4 0.125 5/16 2-1/8 5/16 19/32
1-1/8 0.250 1/2 3 3/8 51/64 P1M Series
1-1/2 0.250 1/2 3-5/8 3/8 7/8
2 0.250 1/2 4-1/8 3/8 15/16
2-1/2 0.312 5/8 5 29/64 1-3/64
3 0.312 5/8 5-1/2 15/32 1-1/16 LP/LPM Series
4 0.375 3/4 7 35/64 1-17/64
* These dimensions are for the LP Series with standard piston.

Cap Pivot Eye
Mounting Style 1 Bore
size L M CB CD FL XD* XE
9/16 1/2 1/4 3/8 3/16 21/32 1-13/32 19/32
3/4 1/2 1/4 3/8 3/16 21/32 1-7/16 3/4
CD Dia. 1-1/8 1/2 1/4 3/8 3/16 49/64 1-13/16 3/4
for clevis pin
1-1/2 13/16 7/16 3/4 3/8 1-1/16 2-3/16 1-3/8
XE 2 13/16 7/16 3/4 3/8 1-1/8 2-5/16 1-3/8
Dia.
2-1/2 13/16 7/16 3/4 3/8 1-1/4 2-5/8 1-3/8
3 1-9/32 9/16 1 5/8 1-21/32 3-1/16 1-7/8
4 1-9/32 9/16 1 5/8 1-11/16 3-7/16 1-7/8
L
FL CB Order clevis pin from accessories when required.
XD* + STROKE M * These dimensions are for the LP Series with standard piston.
See table on the previous page for dimensions for the lipseal piston
or LPM options.
