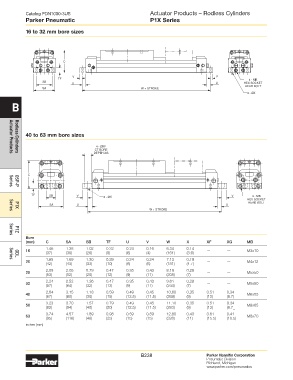

Catalog PDN1000-3US Actuator Products – Rodless Cylinders
Parker Pneumatic P1X Series

16 to 32 mm bore sizes

C

V V
TF 4 - MB
SB
U U HEX SOCKET
SA W + STROKE HEAD BOLT
4 - ØX
B

40 to 63 mm bore sizes

4 - ØXF
CT BORE
DEPTH XG
Actuator Products
Rodless Cylinders

C

Series
OSP-P
TF SB V 4 - ØX V 4 - MB
HEX SOCKET
HEAD BOLT
SA U U
W + STROKE
P1X
Series

P1Z
Bore
Series
(mm) C SA SB TF U V W X XF XG MB
1.46 1.38 1.02 0.32 0.24 0.16 6.34 0.14
16 — — M3x10
(37) (35) (26) (8) (6) (4) (161) (3.6)
1.65 1.69 1.30 0.39 0.24 0.24 7.13 0.19
GDL
20 — — M4x12
Series
(42) (43) (33) (10) (6) (6) (181) (4.7)
2.09 2.05 0.79 0.47 0.35 0.43 8.19 0.28
25 (53) (52) (20) (12) (9) (11) (208) (7) — — M5x50
2.24 2.52 1.26 0.47 0.35 0.43 9.61 0.28
32 — — M5x50
(57) (64) (32) (12) (9) (11) (244) (7)
40 2.64 3.15 1.18 0.59 0.49 0.45 10.60 0.35 0.51 0.34 M6x55
(67) (80) (30) (15) (12.5) (11.5) (269) (9) (13) (8.7)
3.23 3.70 1.57 0.79 0.49 0.45 11.10 0.35 0.51 0.34
50 M8x65
(82) (94) (40) (20) (12.5) (11.5) (283) (9) (13) (8.7_
3.74 4.57 1.89 0.98 0.59 0.59 12.80 0.43 0.61 0.41
63 (95) (116) (48) (25) (15) (15) (326) (11) (15.5) (10.5) M8x70
