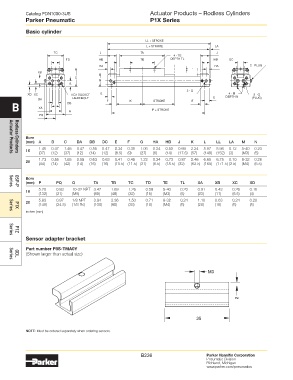

Catalog PDN1000-3US Actuator Products – Rodless Cylinders
Parker Pneumatic P1X Series

Basic cylinder

LL + STROKE
L + STROKE LA
TC J TA J
4 - TE
TD HB TB DEPTH TL HB DC
HA HA 2 - PLUG
XB
C
G
B
2 - Q
4 - M
XD XC HEX SOCKET E DEPTH N 2 - Q
DA HEAD BOLT F K STROKE F E (PLUG)
B XA DB P + STROKE

PQ A

Bore
(mm) A B C DA DB DC E F G HA HB J K L LL LA M N
1.46 0.47 1.46 0.47 0.55 0.47 0.34 0.35 1.06 0.24 0.55 0.69 2.24 5.87 5.98 0.12 5-40 0.20
16
(37) (12) (37) (12) (14) (12) (8.5) (9) (27) (6) (14) (17.5) (57) (149) (152) (3) (M3) (5)
Actuator Products
Rodless Cylinders
1.73 0.55 1.65 0.55 0.63 0.63 0.41 0.45 1.22 0.34 0.73 0.87 2.46 6.65 6.75 0.10 8-32 0.26
20 (44) (14) (42) (14) (16) (16) (10.5) (11.5) (31) (8.5) (18.5) (22) (62.5) (169) (171.5) (2.5) (M4) (6.5)
Bore
(mm) P PQ Q TA TB TC TD TE TL XA XB XC XD
Series
5.20 0.83 10-32 NPT 3.47 1.89 1.26 0.59 5-40 0.20 0.91 0.43 0.26 0.16
OSP-P
16
(132) (21) (M5) (88) (48) (32) (15) (M3) (5) (23) (11) (6.5) (4)
5.83 0.97 1/8 NPT 3.94 2.36 1.50 0.71 8-32 0.24 1.10 0.63 0.24 0.20
20
(148) (24.5) (1/8 Rc) (100) (60) (38) (18) (M4) (6) (28) (16) (6) (5)
P1X
inches (mm)
Series
P1Z
Sensor adapter bracket
Series
Part number P8S-tMa0y
(Shown larger than actual size)
GDL
Series
M3

2

35

NOTE: Must be ordered separately when ordering sensors.
