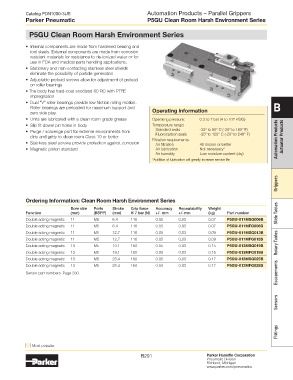

Catalog PDN1000-3US Automation Products – Parallel Grippers
Parker Pneumatic P5GU Clean Room Harsh Environment Series

P5GU Clean Room Harsh Environment Series

• Internal components are made from hardened bearing and
tool steels. External components are made from corrosion
resistant materials for resistance to de-ionized water or for
use in FDA and medical parts handling applications.
• Stationary and non-contacting stainless steel shields
eliminate the possibility of particle generation
• Adjustable preload screws allow for adjustment of preload
on roller bearings
• The body has hard-coat anodized 60 RC with PTFE
impregnation
• Dual “V” roller bearings provide low friction rolling motion.
Roller bearings are preloaded for maximum support and B
zero side play. Operating information
• Units are lubricated with a clean room grade grease Operating pressure: 0.3 to 7 bar (4 to 102 PSIG)
• Slip fit dowel pin holes in body Temperature range:
• Purge / scavenge port for extreme environments from Standard seals -35° to 80° C (-30° to 180° F)
dirty and gritty to clean room Class 10 or better Fluorocarbon seals -30° to 120° C (-20° to 248° F) Automation Products Actuator Products
• Stainless steel screws provide protection against corrosion Filtration requirements: 40 micron or better
Air filtration
• Magnetic piston standard Air lubrication Not necessary*
Air humidity Low moisture content (dry)
*Addition of lubrication will greatly increase service life

Grippers

Ordering Information: Clean Room Harsh Environment Series

Bore size Ports Stroke Grip force Accuracy Repeatability Weight
Function (mm) (BSPP) (mm) @ 7 bar (N) +/- mm +/-mm (kg) Part number Slide Tables
Double acting magnetic 11 M5 6.4 116 0.05 0.03 0.07 P5GU-011MSG006B
Double acting magnetic 11 M5 6.4 116 0.05 0.03 0.07 P5GU-011MFG006B
Double acting magnetic 11 M5 12.7 116 0.05 0.03 0.09 P5GU-011MSG013B
Double acting magnetic 11 M5 12.7 116 0.05 0.03 0.09 P5GU-011MFG013B
Double acting magnetic 13 M5 19.1 160 0.05 0.03 0.15 P5GU-013MSG019B Rotary Tables
Double acting magnetic 13 M5 19.1 160 0.05 0.03 0.15 P5GU-013MFG019B
Double acting magnetic 13 M5 25.4 160 0.05 0.03 0.17 P5GU-013MSG025B
Double acting magnetic 13 M5 25.4 160 0.05 0.03 0.17 P5GU-013MFG025B
Sensor part numbers: Page 330. Escapements
