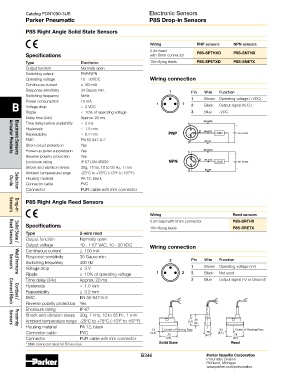

Page 347 - Parker - Parker Pneumatic

Catalog PDN1000-3US Electronic Sensors
Parker Pneumatic P8S Drop-in Sensors

P8S Right Angle Solid State Sensors

Wiring PNP sensors NPN sensors
0.2m lead P8S-SPTHXD P8S-SNTHX
Specifications with 8mm connector
Type Electronic 10m flying leads P8S-SPETXD P8S-SNETX
Output function Normally open
Switching output PNP/NPN
Operating voltage 10 - 30VDC Wiring connection
Continuous current ≤ 150 mA
Response sensitivity 30 Gauss min. Pin Wire Function
Switching frequency 5kHz 1 Brown Operating voltage (+VDC)
B Power consumption 15 mA 2 Black Output signal (N.O.)
≤ 2 VDC
Voltage drop
Ripple ≤ 10% of operating voltage 3 Blue -VDC
Delay time (24v) Approx. 20 ms
Time delay before availability ≤ 2 ms 1
Hysteresis ≤ 1.5 mm 2
Repeatability ≤ 0.2 mm
EMC EN 60 947-5-2 3
Short-circuit protection Yes
Power-up pulse suppression Yes 1
Actuator Products
Reverse polarity protection Yes
Electronic Sensors
Enclosure rating IP 67 DIN 40050 2
Shock and vibration stress 30g, 11ms, 10 to 55 Hz, 1 mm
Ambient temperature range -25°C to +75°C (-13°F to 167°F) 3
Housing material PA 12, black
Connector cable PVC
Guide
Connector PUR cable w/8 mm connector
Selection
P8S Right Angle Reed Sensors

Sensors
Wiring Reed sensors
Drop-in
0.2m lead with 8mm connector P8S-SRTHX
Specifications 10m flying leads P8S-SRETX
Type 2-wire reed
Output function Normally open
Output voltage 10 - 110* VAC, 10 - 30 VDC Wiring connection
Solid State /
Reed Sensors
Continuous current ≤ 100 mA
Response sensitivity 30 Gauss min.
Switching frequency 400 Hz 2 Pin Wire Function
Voltage drop ≤ 3 V 1 Brown Operating voltage (+V)
Sensors
Ripple ≤ 10% of operating voltage 1 3 3 Black Not used
Weld Immune
Time delay (24v) Approx. 20 ms 2 Blue Output signal (-V or Ground)
Hysteresis ≤ 1.0 mm
Repeatability ≤ 0.2 mm
EMC EN 60 947-5-2
Cordset /
Reverse polarity protection Yes
Connect Block
Enclosure rating IP 67
Shock and vibration stress 30g, 11ms, 10 to 55 Hz, 1 mm
.47
Ambient temperature range -25°C to +75°C (-13°F to 167°F) (12) .35
(9)
Housing material PA 12, black
Sensors
Proximity
.13 Center of Sensing Face .32 Center of Sensing Face
Connector cable PVC (3.4) .26 (8.1)
.79 (6.7) .79
Connector PUR cable w/8 mm connector (20) (20)
* 8Mm connector rated for 50 vac max. Solid State Reed
B346 Parker Hannifin Corporation
Pneumatic Division
Richland, Michigan
www.parker.com/pneumatics
