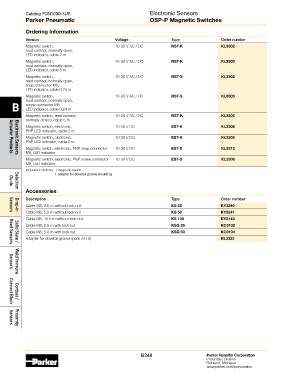

Page 349 - Parker - Parker Pneumatic

Catalog PDN1000-3US Electronic Sensors
Parker Pneumatic OSP-P Magnetic Switches

Ordering Information

Version Voltage Type Order number
Magnetic switch, 10-30 V AC / DC RST-K KL3302
reed contact, normally open,
LED indicator, cable 2 m
Magnetic switch, 10-30 V AC / DC RST-K KL3300
reed contact, normally open,
LED indicator, cable 5 m
Magnetic switch, 10-30 V AC / DC RST-S KL3302
reed contact, normally open,
snap connector M8,
LED indicator, cable 0.24 m
Magnetic switch, 10-30 V AC / DC RST-S KL3303
reed contact, normally open,
B screw connector M8,
LED indicator, cable 0.24 m
Magnetic switch, reed contact, 10-30 V AC / DC RST-K KL3305
normally closed, cable 5 m
Magnetic switch, electronic, 10-30 V DC EST-K KL3308
PNP LED indicator, cable 2 m
Magnetic switch, electronic, 10-30 V DC EST-K KL3309
PNP LED indicator, cable 5 m
Magnetic switch, electronic, PNP snap connector 10-30 V DC EST-S KL3312
M8, LED indicator
Actuator Products
Electronic Sensors
Magnetic switch, electronic, PNP screw connector 10-30 V DC EST-S KL3306
M8, LED indicator
Included in delivery: 1 magnetic switch
1 adapter for dovetail groove mounting

Guide
Accessories
Selection
Description Type Order number
Cable M8, 2.5 m without lock nut KS 25 KY3240
Cable M8, 5.0 m without lock nut KS 50 KY3241
Sensors
Drop-in
Cable M8, 10.0 m without lock nut KS 100 KY3140
Cable M8, 2.5 m with lock nut KSG 25 KC3102
Cable M8, 5.0 m with lock nut KSG 50 KC3104
Adapter for dovetail groove (pack of 10) KL3333
Solid State /
Reed Sensors

Sensors
Weld Immune

Cordset /
Connect Block

Sensors
Proximity

B348 Parker Hannifin Corporation
Pneumatic Division
Richland, Michigan
www.parker.com/pneumatics
