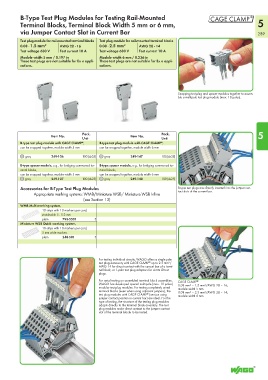

Page 291 - Wago_Rail-MountedTerminalBlockSystems_Volume1_2015_US.pdf

"

B-Type Test Plug Modules for Testing Rail-Mounted
Terminal Blocks, Terminal Block Width 5 mm or 6 mm, 5
via Jumper Contact Slot in Current Bar 289
Test plug module for rail-mounted terminal blocks Test plug module for rail-mounted terminal blocks
0.08 - 1.5 mm² AWG 28 - 16 0.08 - 2.5 mm² AWG 28 - 14
Test voltage 630 V Test current 10 A Test voltage 630 V Test current 10 A
Module width 5 mm / 0.197 in Module width 6 mm / 0.236 in
These test plugs are not suitable for Ex e appli- These test plugs are not suitable for Ex e appli-
cations. cations.

Snapping test plug and spacer modules together to assem-
ble a multipole test plug module (max. 10 poles).

Pack. Pack. 5
Item No. Item No.
Unit Unit
®
®
B-type test plug module with CAGE CLAMP , B-type test plug module with CAGE CLAMP ,
can be snapped together, module width 5 mm can be snapped together, module width 6 mm
gray 249-106 100 (4x25) gray 249-147 100 (4x25)
B-type spacer module, e.g., for bridging commoned ter- B-type spacer module, e.g., for bridging commoned ter-
minal blocks, minal blocks,
can be snapped together, module width 5 mm can be snapped together, module width 6 mm
gray 249-107 100 (4x25) gray 249-148 100 (4x25)
Accessories for B-Type Test Plug Modules B-type test plugs are directly inserted into the jumper con-
tact slots of the current bar.
Appropriate marking systems: WMB/Miniature WSB/ Miniature WSB Inline
(see Section 13)
WMB Multi marking system,
10 strips with 10 markers per card,
stretchable 5 - 5.2 mm
plain 793-5501 5
Miniature WSB Quick marking system,
10 strips with 10 markers per card,
5 mm wide markers
plain 248-501 5

For testing individual circuits, WAGO offers a single-pole
test plug accessory with CAGE CLAMP up to 2.5 mm²/
®
AWG 14 for direct contact with the current bar of a termi-
nal block, or 1-pole test plug adapters for 4 mm Ø test
plugs.

For serial testing on assembled terminal block assemblies, CAGE CLAMP
®
WAGO has developed special multipole (max. 10 poles) 0.08 mm² – 1.5 mm²/AWG 28 – 16;
modular test plug modules. For testing completely wired module width 5 mm
terminal blocks (even when using adjacent jumpers), the 0.08 mm² – 2.5 mm²/AWG 28 – 14;
test plug modules with CAGE CLAMP (version using module width 6 mm
®
jumper contact position in current bar) are ideal. For this
type of testing, the structure of the testing plug modules
adapts directly to the terminal block assembly. The test
plug modules make direct contact to the jumper contact
slot of the terminal blocks to be tested.
