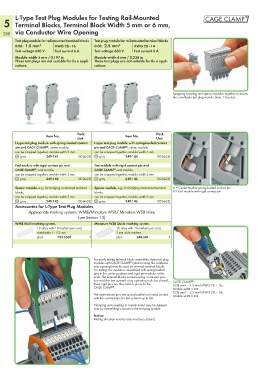

L-Type Test Plug Modules for Testing Rail-Mounted
5 Terminal Blocks, Terminal Block Width 5 mm or 6 mm,
288 via Conductor Wire Opening
Test plug module for rail-mounted terminal blocks Test plug module for rail-mounted terminal blocks
0.08 - 1.5 mm² AWG 28 - 16 0.08 - 2.5 mm² AWG 28 - 14
Test voltage 630 V Test current 6 A Test voltage 630 V Test current 6 A
Module width 5 mm / 0.197 in Module width 6 mm / 0.236 in
These test plugs are not suitable for Ex e appli- These test plugs are not suitable for Ex e appli-
cations. cations.

Snapping test plug and spacer modules together to assem-
ble a multipole test plug module (max. 10 poles).

Pack. Pack.
Item No. Item No.
Unit Unit
L-type test plug module with spring-loaded contact L-type test plug module with spring-loaded contact
®
®
pin and CAGE CLAMP , center module, pin and CAGE CLAMP , center module,
can be snapped together, module width 5 mm can be snapped together, module width 6 mm
gray 249-141 100 (4x25) gray 249-144 100 (4x25)
End module with rigid contact pin and End module with rigid contact pin and
®
®
CAGE CLAMP , end module, CAGE CLAMP , end module,
can be snapped together, module width 5 mm can be snapped together, module width 6 mm
gray 249-142 100 (4x25) gray 249-145 100 (4x25)
Spacer module, e.g., for bridging commoned terminal Spacer module, e.g., for bridging commoned terminal A = Center module spring-loaded contact pin
blocks, blocks, B = End module with rigid contact pin
can be snapped together, module width 5 mm can be snapped together, module width 6 mm
gray 249-143 100 (4x25) gray 249-146 100 (4x25)
Accessories for L-Type Test Plug Modules
Appropriate marking systems: WMB/Miniature WSB/ Miniature WSB Inline
(see Section 13)
WMB Multi marking system, Miniature WSB Quick marking system,
10 strips with 10 markers per card, 10 strips with 10 markers per card,
stretchable 5 - 5.2 mm 5 mm wide markers
plain 793-5501 5 plain 248-501 5

For easily testing terminal block assemblies, these test plug
modules with CAGE CLAMP (version using the conductor
®
wire opening) may be used on unwired terminal blocks.
For testing, the module is assembled with spring-loaded
pins in the center positions and rigid pin modules at the
ends. The terminal blocks corresponding to the end posi-
tion modules are opened using operating tools (as shown), CAGE CLAMP
®
these rigid pins are then held in place by the 0.08 mm² – 1.5 mm²/AWG 28 – 16;
®
CAGE CLAMP . module width 5 mm
0.08 mm² – 2.5 mm²/AWG 28 – 14;
The intermediate pins are spring-loaded and make contact module width 6 mm
with the current bars, for test currents up to 6A.

Clamping units needing to remain wired may be skipped
over by assembling a spacer in the test plug module.

Notice:
Mating direction must be observed (see picture).
