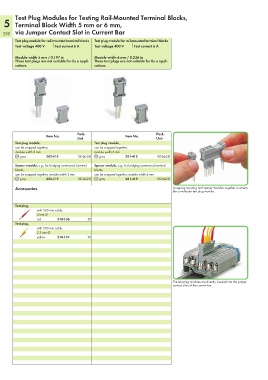

Page 292 - Wago_Rail-MountedTerminalBlockSystems_Volume1_2015_US.pdf

Test Plug Modules for Testing Rail-Mounted Terminal Blocks,
5 Terminal Block Width 5 mm or 6 mm,
290 via Jumper Contact Slot in Current Bar
Test plug module for rail-mounted terminal blocks Test plug module for rail-mounted terminal blocks
Test voltage 400 V Test current 6 A Test voltage 400 V Test current 6 A

Module width 5 mm / 0.197 in Module width 6 mm / 0.236 in
These test plugs are not suitable for Ex e appli- These test plugs are not suitable for Ex e appli-
cations. cations.

Pack. Pack.
Item No. Item No.
Unit Unit
Test plug module, Test plug module,
can be snapped together, can be snapped together,
module width 5 mm module width 6 mm
gray 280-418 100 (4x25) gray 281-418 100 (4x25)
Spacer module, e.g., for bridging commoned terminal Spacer module, e.g., for bridging commoned terminal
blocks, blocks,
can be snapped together, module width 5 mm can be snapped together, module width 6 mm
gray 280-419 100 (4x25) gray 281-419 100 (4x25)
Accessories Snapping test plug and spacer modules together to assem-
ble a multipole test plug module.

Test plug,
with 500 mm cable,
2 mm Ø
red 210-136 50
Test plug,
with 500 mm cable,
2.3 mm Ø
yellow 210-137 50

The test plug modules are directly inserted into the jumper
contact slots of the current bar.
