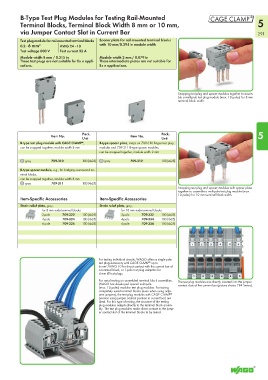

Page 293 - Wago_Rail-MountedTerminalBlockSystems_Volume1_2015_US.pdf

"

B-Type Test Plug Modules for Testing Rail-Mounted
Terminal Blocks, Terminal Block Width 8 mm or 10 mm, 5
via Jumper Contact Slot in Current Bar 291
Test plug module for rail-mounted terminal blocks Spacer plate for rail-mounted terminal blocks
0.2 - 6 mm² AWG 24 - 10 with 10 mm/0.394 in module width
Test voltage 800 V Test current 32 A
Module width 8 mm / 0.315 in Module width 2 mm / 0.079 in
These test plugs are not suitable for Ex e appli- These intermediate plates are not suitable for
cations. Ex e applications.

Snapping test plug and spacer modules together to assem-
ble a multipole test plug module (max. 10 poles) for 8 mm
terminal block width.

Pack. Pack. 5
Item No. Item No.
Unit Unit
B-type test plug module with CAGE CLAMP , B-type spacer plate, snaps on 709-310 B-type test plug
®
can be snapped together, module width 8 mm modules and 709-311 B-type spacer modules,
can be snapped together, module width 2 mm
gray 709-310 100 (4x25) gray 709-312 100 (4x25)
B-type spacer module, e.g., for bridging commoned ter-
minal blocks,
can be snapped together, module width 8 mm
gray 709-311 100 (4x25)
Snapping test plug and spacer modules with spacer plate
together to assemble a multipole test plug module (max.
10 poles) for 10 mm terminal block width.
Item-Specific Accessories Item-Specific Accessories
Strain relief plate, gray, Strain relief plate, gray,
for 8 mm wide terminal blocks for 10 mm wide terminal blocks
2-pole 709-322 100 (4x25) 2-pole 709-332 100 (4x25)
4-pole 709-324 100 (4x25) 4-pole 709-334 100 (4x25)
6-pole 709-326 100 (4x25) 6-pole 709-336 100 (4x25)

For testing individual circuits, WAGO offers a single-pole
test plug accessory with CAGE CLAMP up to
®
6 mm²/AWG 10 for direct contact with the current bar of
a terminal block, or 1-pole test plug adapters for
4 mm Ø test plugs.

For serial testing on assembled terminal block assemblies, The test plug modules are directly inserted into the jumper
WAGO has developed special multipole contact slots of the current bar (picture shows 284 Series).
(max. 10 poles) modular test plug modules. For testing
completely wired terminal blocks (even when using adja-
cent jumpers), the test plug modules with CAGE CLAMP
®
(version using jumper contact position in current bar) are
ideal. For this type of testing, the structure of the testing
plug modules adapts directly to the terminal block assem-
bly. The test plug modules make direct contact to the jump-
er contact slot of the terminal blocks to be tested.
